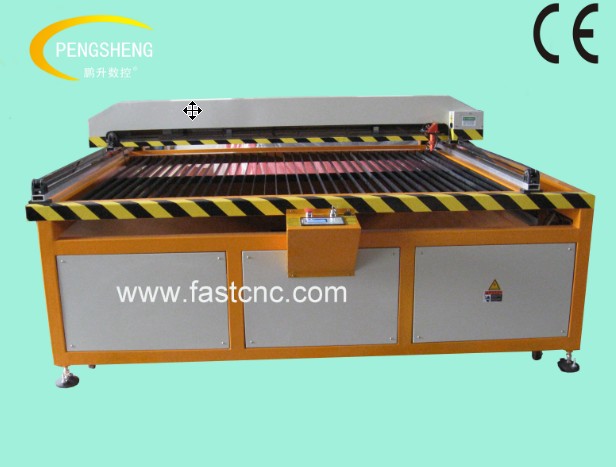

High speed laser cutting machine
Specifications
- Brand
- PENN
- Origin
- China
- Certifications
- CE,SGS
- MOQ
- 1piece
- Packaging
- plywood case
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
- Supply Ability
- 200pcs/month
- Delivery Time
- 10 working days
- Loading Ports
- Qingdao
- Guarantee
- 1 year
High speed laser cutting machine is a Other Laser Equipment product. Key specs — Brand: PENN; Origin: China; Certifications: CE,SGS; MOQ: 1piece.
Product Description
Feature: Adopt the international advanced DSP control technology, it is the pioneer to fast continuously curving-cut and shortcut processing pathway optimizing function, accordingly increase greatly the decency. It automatically equalizes the diminishing of light during the whole operating to ensure the same cutting effect ion different area.
High-speed cutting control software and buffer function in high-speed movement can improve production efficiency. The up-to-date software provides the direct output of original pictures; completely fit the graph foams such as CAD, CAM of CAD, and CorelDraw software, to meet the practical design requirement of the end users.
The advanced colors and the toms of the cutting can realize the one-time output completely or partially. 6.It uses USB port to transmit data, equipped with large-capacity memory, improving working efficiency greatly.
Technical Parameter: Model PC-1318L PC-1325L PC1530L PC-1830L Table Size（mm） 1300*1800 1300*2500 1500*3000 1800*3000 Laser Power 　　80W/100W/130W/150W/170W Laser Type 　　CO2 sealed laser tube, water-cooled, 10.6um Cooling type 　　Water-cooled Engraving Scanning Speed 　　0-6000mm/min Max Moving Speed 　　30000mm/min Cutting speed 　　0-1000mm/min Laser Output Control 　　1-100%software setting Smallest Character Engraving 　　 English 1.0mm*1.0mm Highest Scanning Precision 　　2500DPI Locating Precision 　　0.01mm Supported File Format 　　DAT,PLT,BMP,DXF,AI,etc.
Compatible Software 　　TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD Operating humidity Temperature:0-45,Humidity:5%-95%(without condensed water) Optional parts: Up&down table,auto focus system,rotary device, ball scew transmission,water chiller.
Applicable Industries: Advertising industry:Double-colored board engraving,Organic glass engraving and cutting,Label engraving,Crystal cup engraving, Warranty signed engraving Carved gifts and crafts industry:Wood,Bamboo Ivory ,Bone,Leather,Marble Packing and printing industry:Rubbery board,Plastic board,Double-layered board,Model cutting board.
Leather clothing industry: Complex letters and pattern engraving,Cutting on hypoderm,Synthetic leather,Man-made leather,Cloth.
Architectural model industry: ABS board cutting,Model cutting Production totem industry: Appliance signs,Anti-fake commodities making Applicable Materials: Wood,Bamboo,jade,marble,acrylic,crystal,leather,plastic,paper,rubber,ceramic,glass and other non-metal materials.
