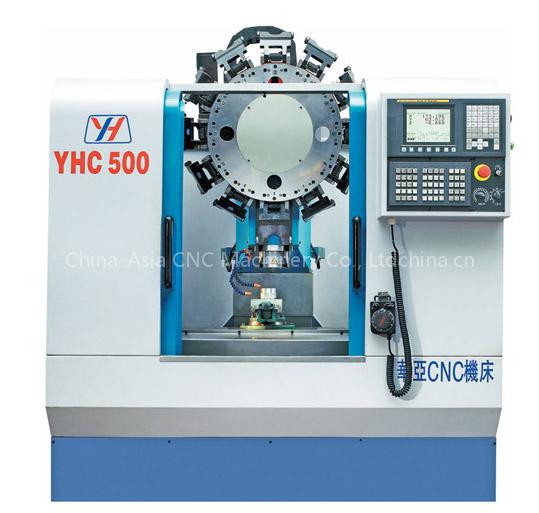

High-speed CNC Tapping Center (Drilling center)

High-speed CNC Tapping Center/Drilling Center
-The processing speed is fast due to the adoption of 3-axis track
-It is compact with small floor area.
-With the function of one-touch zero clearance, it is easy to operate
-The machine tool precision is detected and corrected through ball bar and laser interferometer.
-Installed with high-speed electric spindle, one machine serves several purposes
-The fully-protected metal plate guarantees the safety and environment

High-speed teeth-tapping Machine	YHC500
Table Size mm	300×700
X-axis Travel mm	500
Y-axis Travel mm	350
Z-axis Travel mm	480
Spindle Speed rpm	10000(12000)
Handle Type	BT30
Feed Rate mm/min	0~20000
T-slot Width mm	14
Maximum Table Load Capacity kg	200
Least Input Increment mm	0.001
Repeat Positioning Accuracy mm	0.005
Positioning Accuracy mm	0.01
Main Motor kw	3.7
Machine Dimensions mm	1600×1600×2000
Machine Weight kg	2800/5700

Standard Configuration		Configuration Optional		System Optional
CNC System	Cooling System	Hat-type Tool Changer T10	Heat Exchanger for Power Switch Box	SIEMENS CNC System
Pneumatic Unclamping Cylinder	Lighting System	High-speed Electric Spindle 20000rpm	Air-Conditioning for Power Switch Box	Central China CNC System
Full Guard	Machine Tool Operating Manual	Spindle of 8000rpm	Automatic Chip Cleaner	MITSUBISHI CNC System
Automatic Lubrication System	Tools and Tool Kits	Four-axis NC Rotary Table	Milling Chuck and Detachable Cutter Block	FAGOR CNC System
