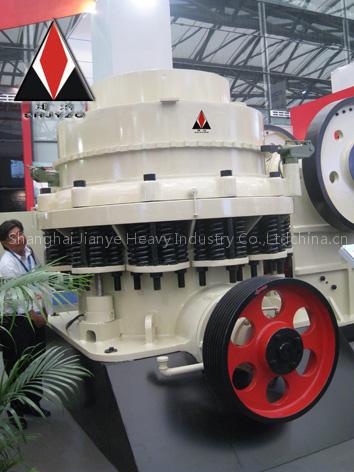

High efficiency cone crusher

The shanghai jianye cone crusher series has a feature of reliable construction, high productivity , easy adjustment and low operating cost. It is widely used both domestic and abroad in metallurgy, architecture, roak making , chemistry and silicate industry for crushing various mid-hard and hard ores and rocks. Its spring release system acts as an overload protection to allow the tramp iron to pass without damage to the crushing chamber. The sealing system uses double dry oil and water sealing to separate the lubricating oil from stone dust to provide its reliable operationg .The crushing chamber has atandard, medium and short head typer to fit the needs of medium crushing , medium-fine crushing and fine crushing.

Cone Crusher Specification:

Model	Haed Diameter(mm)	Max Feeding Size(mm)	Output Size(mm)	Capacity(t/h)	Power of Motor(Kw)	Overall Dimensions(mm)
JYB600	600	65	12-25	40	30	2234×1370×1675
JYD600		35	3-13	12-23
JYB900	900	115	15-50	50-90	55	2692×1460×2350
JYZ900		60	5-20	20-65
JYD900		50	3-13	15-20
JYB1200	1200	145	20-50	110-168	110	2590×1878×2844
JYZ1200		100	8-25	42-135
JYD1200		50	3-15	18-105
JYB1750	1750	215	25-50	280-480	160	3910×2894×3809
JYZ1750		185	10-30	115-320
JYD1750		85	5-13	75-230
JYB2200	2200	300	30-60	500-800	280/260	4622×3302×4470
JYZ2200		230	10-30	200-580
JYD2200		100	5-15	120-340

Note: This specification is just reference, any changes are subject to cone crusher the products
