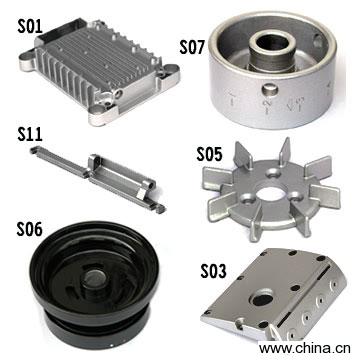

High Speed Sewing Machinery Parts (Die-Casting)

Model No.:S01, S03, S05, S06, S07, S11 Product

Origin:China Brand

Name:

Price Terms:

Payment Terms:L/C, T/T

Certification:ISO9001 Description:

Product Name: High Speed Sewing Machinery Parts (Die-Casting)

Model Number: S01, S03, S05, S06, S07, S11

Place of Origin: China Code: S011) Title: oil reservoir2)

Material: ADC12 (Japan)3)

Size: 274 x 218 x 53.5mm (rounding-off method)4)

Weight: 1,330g5) Working process: die casting --> metalworking --> baking finish Code: S031) Title: upper cover gasket2)

Material: ADC12 (Japan)3)

Size: 163 x 128.5 x 50mm/163 x 128.5 x 53mm (rounding-off method)4)

Weight: 427 g / 430 g5) Working process: die casting --> metalworking --> baking finish Code: S051) Title: cooling lamina2)

Material: ADC12 (Japan)3)

Size: 80 (excircle) x 14mm (rounding-off method)4)

Weight: 34 g5) Working process: die casting --> metalworking --> baking finish Code: S061) Title: superior whorl2)

Material: ADC12 (Japan)3)

Size: 94 (excircle) x 47.5mm / 94 (excircle) x 47mm (rounding-off method)4)

Weight: 192g / 191g5) Working process: die casting --> metalworking --> baking finish Code: S071) Title: hand wheel2)

Material: ADC12 (Japan)3)

Size: 60 (excircle) x 29mm (rounding-off method)4)

Weight: 103g5) Working process: die casting --> metalworking --> baking finish Code: S111) Title: looper cover bracket2)

Material: ADC12 (Japan)3)

Size: 176 x 22.3 x 20.3mm (rounding-off method)4)

Weight: 40g5) Working process: die casting --> metalworking --> baking finish With our complete machining line and such superior surface finishing as ball blasting, plastic spraying, spray painting, baking finish, electroplating and brunofixing, we can work with you on an OEM basis.

Inner packing:1pc/plastic bag of complete size

Outer packing:1pc/cardboard case of custom size
