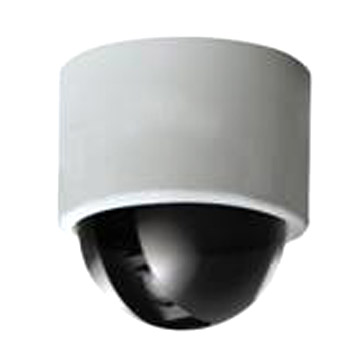

High Speed Dome Camera
Specifications
- Origin
- China (Mainland)
High Speed Dome Camera is a Camera, Photo & Accessories product. Key specs — Origin: China (Mainland).
Product Description
Product Name: High Speed Dome CameraModel Number: HB210-SPlace of Origin: ChinaSpecifications: 1) Effective pixels: 752 (H) x 582 (V) 2) Scanning area: 3.6mm (H) x 2.7mm (V); 1/4 3) Video output: 1.0Vp-p 4) Horizontal resolution: 470TVL 5) S/N ratio: ≥50dB 6) Iris: auto 7) Focus: auto 8) Zoom ratio: 18, 22, 23, 27 9) White balance: auto 10) BLC: ON/OFF 11) Panning range: 360° continuous 12) Pan speed: 0.5 - 100°/sec 13) Tilt range: 0 - 90° 14) Tilt speed 0.5 - 100°/sec 15) Communication: RS485 16) Controls 128 preset positions 17) Auto pan: ON/OFF 18) Auto tracking mode: 2 cruising track 19) Power source: AC 24V 20) Dimensions: φ133 x 222mm (H) 21) Weight: approx.
2kg 22) Operating temperature: -10° - +60° Packing: Carton dimensions: 36 x 23.5 x 27cm N.W.: 3.95kg G.W.: 2.66kg
