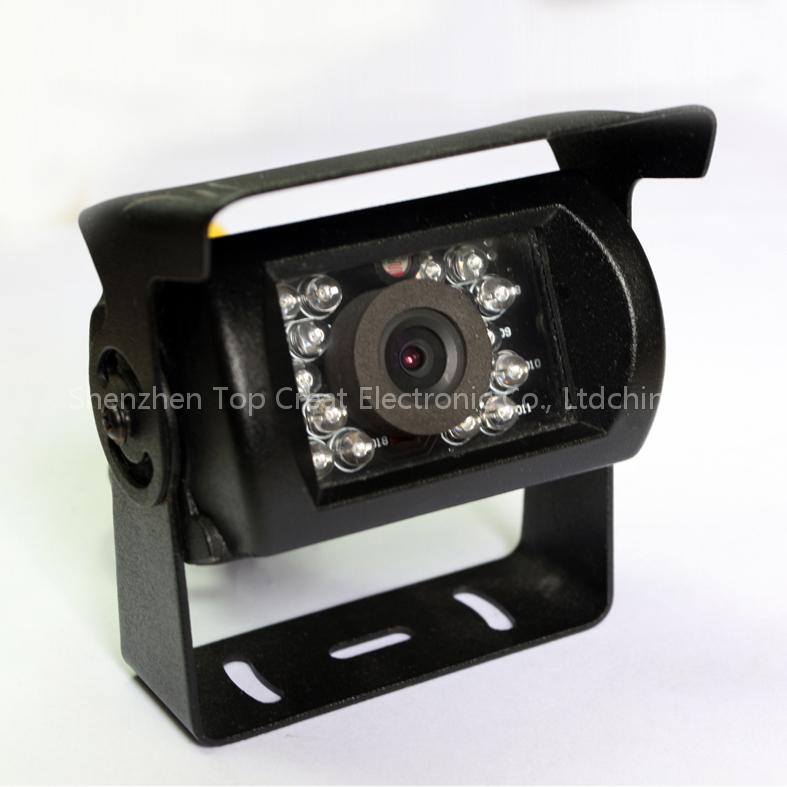

High Resolution Rearview Camera bor Bus

Model:

CCGE

Image Device:

OV7950

TV System:

NTSC

Effective Pixels:

656 x 492 pixels

Sensing Area:

4.08mm x 3.1mm

Scanning System:

2:1Interlace

Sync. System:

Internal

Resolution:

420TV lines

Horizontal Sync. Frequency:

15.625KHz / 15.734KHz

Vertical Sync. Frequency :

50Hz / 60Hz

Minimum Illumination:

0 Lux/F1.2 with IR

Video Output:

1.0vp-p, 75Ohm

Gamma Consumption:

0.45

Viewing Angle:

120 to 170°(optional)

S/N Ratio:

Better than 48dB

White Balance:

Auto

Electronic Shutter:

1/60~1/15,000 Seconds

BLC:

Auto

Current Consumption:

100mA

Power Supply:

DC12V

Operating Temperature:

-20°C~75°C , RH95% MAX

Storage Temperature:

-30°C~85°C,RH95% MAX
