High Frequency Dewatering Screen

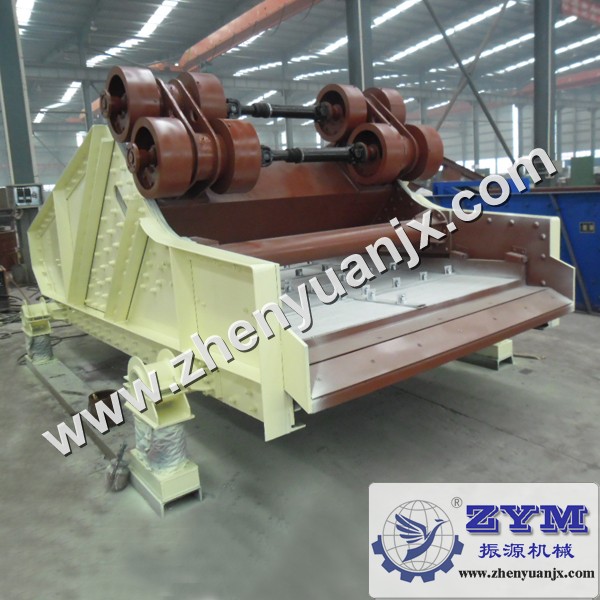

GPS High Frequency Dewatering Vibrating Screen

--from Zhenyuan Machinery, we since 1964!

Main Function: Screening, Dewatering, Desliming

Application Field:

It is mainly used in classification and dewatering for granule, such as coal slime and other tailings.

Feature:

1. Connecting by ring-grooved rivets, hard deformation, stronger than welding.

2. Uses linear vibrations which are generated by an out-of-balance drive

3. Small amplitude (3~5 mm), high frequency (25 Hz). So the screens are very suitable for dewatering.

4. Side plate’s material is Q235A or Q245A, thickness can be 8~10 mm.

5. Screening media is stainless steel strip-crack screen plate.
