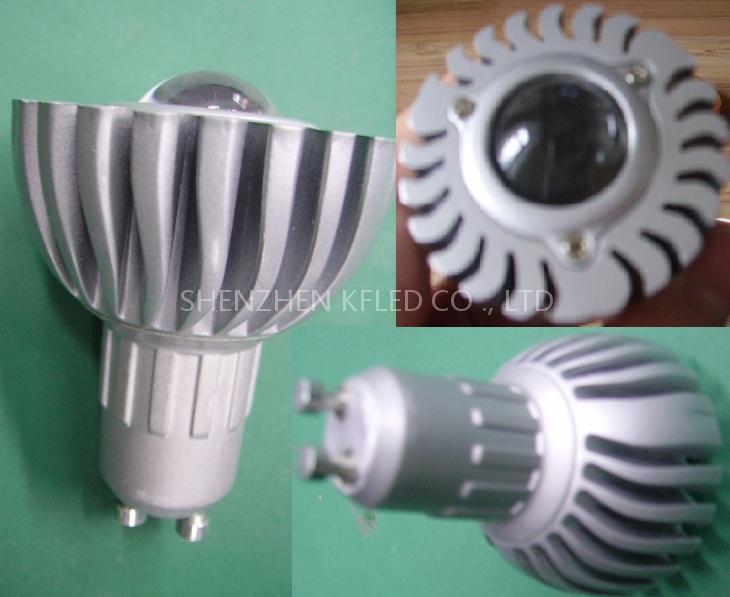

HiPower LED Bulb(GU10,E27,MR16)

GU10-1W 1. Production Description The GU10 use a high power LED. It can work in 20~220Voltage colour can been changed according to customer. (such as: warm white, white, blue, green, red and so on). The production have a beautiful sculpture, it's a really artistic when lighting. The GU10 work in constant current, it can keep the light-flux at all time. 2. Operating condition:

Description	Symbol	Min.	Typ.	Max.	Unit
Normal operating voltage	VAC	20	220	230	V
LED current VAC	ID	290	310	320	mA
Operation Dissipative	P	-	1.3	1.5	mA
Light beam	I	-	-	80	mA
Operating temperature	T	-40	-	+85	[Celsius temperature scale
Storage temperature	TST	-40	-	100	[Celsius temperature scale

3.DimensionDiameter: 50mm4. Burn-in Condition 1) Burn in voltage: 220 VAC in environment temperature 2)Burn in time: 24hours 3)Heat sink material: Al5. Material 1)The housing material: Al 2)1W LED as the light 3)Use Fresnel collimator as lens, PMMA material6. Attention item 1)When install or remove the lamp, please turn off the power 2)In general, the lamp is used indoor. If it be installed outdoor, please add the waterproof device 3)The production have a widely operation voltage, it can been used in 20~230 alternant voltage
