Hexgonal wire mesh
Specifications
- Origin
- china
- Packaging
- As per Buyer’s Request.
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
Hexgonal wire mesh is a Wire Mesh product. Key specs — Origin: china; Packaging: As per Buyer’s Request.; Price Term: EXW/EX-Work,FOB; Payment Term: T/T,L/C,Western Union.
Product Description

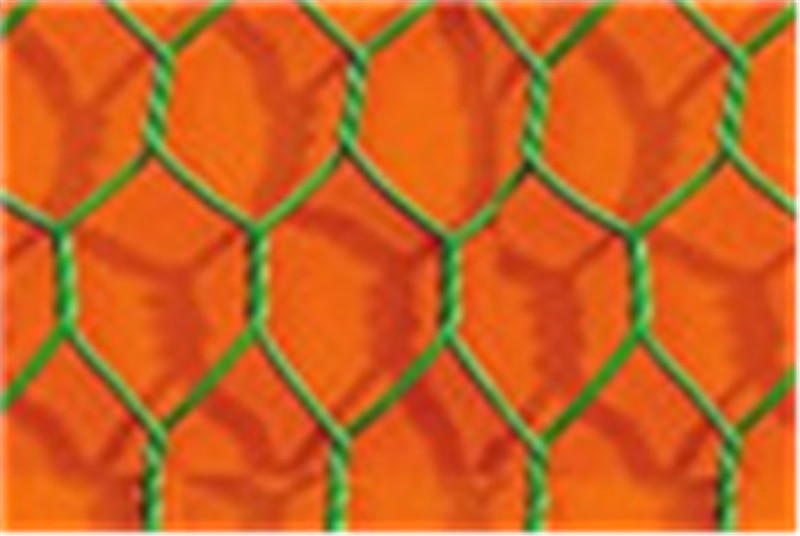

Hexgonal wire mesh/chicken wire/ Rabbit netting Material *normal soft carbon steel wire *stainless steel wire Products available *hot-dip galvanized hexagonal wire netting *electro galvanized hexagonal wire netting *pvc coated hexagonal wire netting *stainless steel hexagonal wire netting
Galvanized hex. Wire netting in normal twist (width 0.5M-2.0M) MESH SIZE Wire Gauge (BWG) INCH mm 3/8†10mm 27,26,25,24,23,22,21 1/2†13mm 25,24,23,22,21,20 5/8†16mm 27,26,25,24,23,22, 3/4†20mm 25,24,23,22,21,20,19 1†25mm 25,24,23,22,21,20,19,18 1-1/4†32mm 22,21,20,19,18 1-1/2†40mm 22,21,20,19,18,17 2†50mm 22,21,20,19,18,17,16,15,14, 3†75mm 21,20,19,18,17,16,15,14, 4†100mm 17,16,15,14,
GALVANIZED HEX. WIRE NETTING IN REVERSE TWIST(WIDTH 0.5M-2.0M) MESH SIZE WIRE GAUGE（BWG） RAINFORCEMENT INCH MM （BWG） WIDTH（FEET） STRAND 1†25mm 22,21,20,18 2’ 1 1-1/4†32mm 22,21,20,18 3’ 2 1-1/2†40mm 20,19,18 4’ 3 2†50mm 20,19,18 5’ 4 3†75mm 20,19,18 6’ 5
HEX. WIRE NETTING PVC COATED MESH SIZE WIRE DIAMETER（mm） INCH MM 1/2†13mm 0.9mm,1.0mm 1†25mm 1.0mm,1.2mm,1.4mm 1-1/2†40mm 1.0mm,1.2mm,1.4mm,1.6mm 2†50mm 1.0mm,1.2mm,1.4mm,1.6mm
