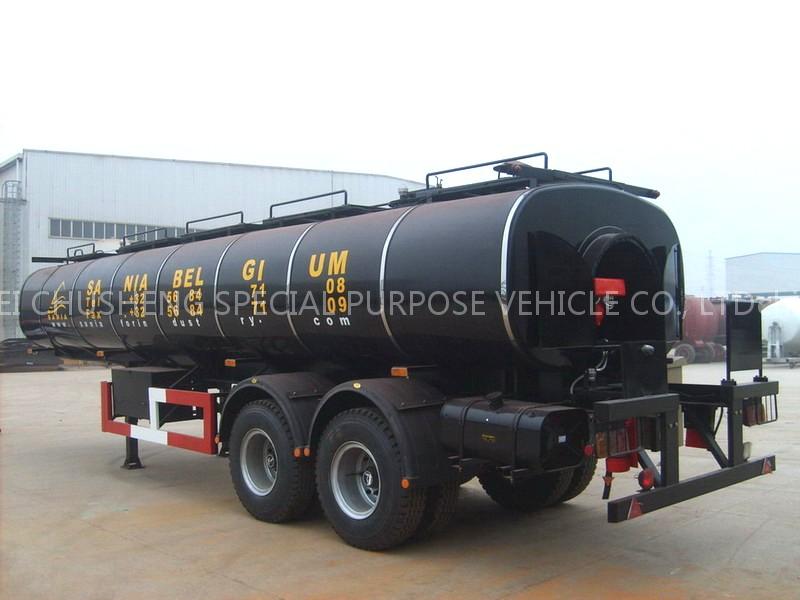

Heated asphalt tank semi trailer 3 axles

Asphalt trailers also known as bitumen tank semi trailer, asphalt hauling trailers, asphalt trailer manufacturers, heated asphalt trailer. CSC is the tank trailer manufactures in china offer with semi trailer bitumen and asphalt tank.

Compartment: 1 Compartment and 2 unit manhole cover on it.

Chassis: Mono blocks Chassis from quality steel. The chassis is produced with 5 mm Q235A carbon quality sheet steel and 120x12 I beam steel by gas applied welding method.

Body: Body of Tanker is made of Q235A 5 mm. sheet iron rear and front chambers are pressed. Tank body is cylindrical shape with robotic welding technology.

DISCHARG SYSTEM: 4” Globe valve is placed with 4” Elbow to rear of the tank in such a way that all goods in the tank can be discharged.

PUMP SYSTEM: Pump discharge system at the backside of the trailer to make discharge. Pump system will operate from diesel generator.

Filling system: there are 2 units manhole cover will be placed at the top of the tank. Manhole cover will be isolated 8-10 mm. Thickness, and there will be locking and seal place. Piper of overflow poll which will be placed on tank is 1”

Heating system: Rear of the Tank there will be 2 Units Oil Burner which run on diesel or equivalent. There will be a platform rear of the tank for operating oil burner.

Isolations: Tank will be isolate with 50 mm Fiber mineral wool. And there will be 1 Thermometer till 200 degree to show inside temperature.

Ladder platform: There will be 1 unit ladder. There will be a walking platform.

Chassis accessories: King Pin can be assemble and disassemble from the bottom, diameter 2” (50, 8 mm.) in accordance to SAE and DIN Standards.

Landing legs: Double Speed, 25 tones Loading Capacity. 1 Unit Spare Wheel Carrier, 6 Unit Plastic Mudguards.

Axles: 2 axles each have 16 ton loading capacity.

Suspension system: Mechanical Suspension.

Tires: 12.00 R 22, 5; 8 + 1 Units.

Brake system: Double line air brake system.

Accessories: 1 Unit Spare Tire, 1 Unit Water Tank made of Stainless Steel, 2 Unit extinguisher and Fire Extinguisher Box.

Electric System: Electric system is 24 volt with E certificate. electrical equipment /lighting electrical socket complying with the European community 76/756 EWG regulations, in conformity with ISO 12098, having 15 poles or 2*7 poles connected to the vehicle`s front air panel (Excluding the connection cable).

At the rear side, plate lighting, multi sectioned stop lights with triangular reflector integration, rear limit lights, side limit lights, front limit lights.

Paint: Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer request in Paint Oven.

Optional Information welcomes your inquiry.
