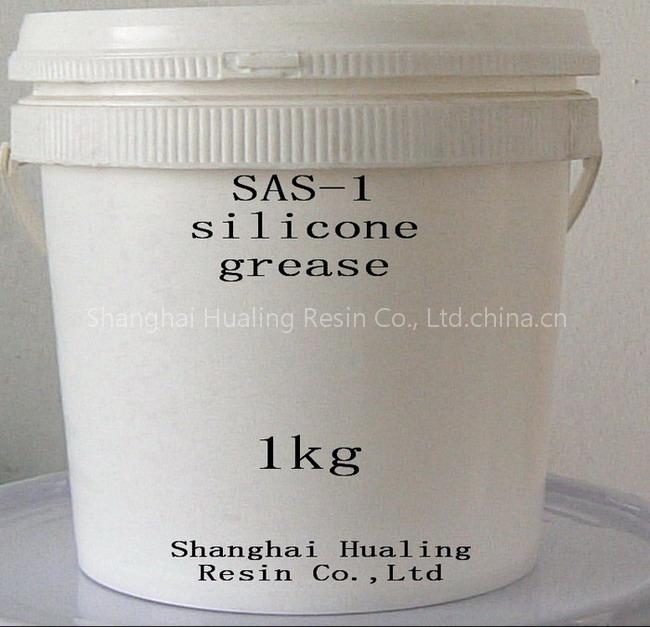

Heatconducting Silicone Grease(SAS-1)

Non-curing, thermally conductive silicone paste,besides SAS-1 Silicone grease has excellent insulation and stability, with wide working extent (- 50 ~ +180), used widely in thermal interface dispensed for CPUs, thermal conduction and electric conduction etc, as it have moderate thermal conductivity; low bleed(close to 0) ; stable at high temperatures,easily for gap fill material between electronic heat sources and heat sinks and having low thermal resistance, high thermal conductivity.

SAS-1 silicone grease Similarly Dow Corning 340 silicone compound

Index SAS-1

Heatconducting grease

Appearance: Opal white paste

Penetration Index (25),1/10mm 140 - 190

Volatility 200/24 hours,% 3.0

Bleeding 200/24hours % ≤ 0

Dielectric Constant: 1 Hz 4.8 ~ 5.2

Dielectric Dissipation Factor 1 Hz ≤ 0.9x10-7

Volume Resistivity Ω cm ≥ 3x1015

Beakdown Strength KV/mm ≥ 3.9

Coefficient of heat conductivity Kcal/mhkwh 0.2251

Apart from this Heatconducting Silicone Grease(SAS-1), our company also has a lot of other you are interested in this Heatconducting Silicone Grease(SAS-1),please feel free to contact us.
