Heat Pipe Solar Collectors
Listing ID#10229096
ModelYR58/18-1800
CategoryEnergy Projects
Energy Projects

Heat Pipe Solar Collectors

Specifications

Brand
sunprince solar,webessolar
Origin
changzhou,china
Request Quote
Quick answer

Heat Pipe Solar Collectors is a Energy Projects product. Key specs — Brand: sunprince solar,webessolar; Origin: changzhou,china.

Product Description

Technology: Manifold casing material Aluminum painted un-oxygen layer --2.0mm thickness

Frame material Aluminum painted un-oxygen layer --2.0mm thickness

Header pipe material Red copper,dia 35mm

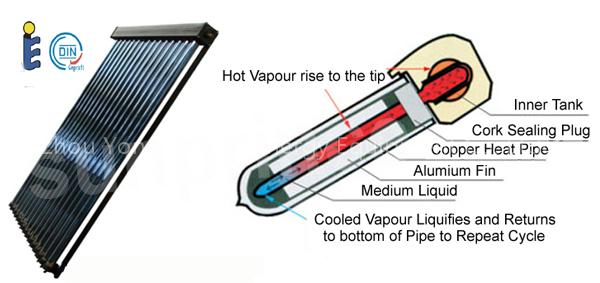

Heat pipe material Patnet super conductivity materila inside.Excellent heat transferring

Insulation Layer Comparessed Rock wool55-58 mm

Rubber seals and rings UV stabilized high temperature silicon rubber

Test pressure 15 bar

Collector mounting Plane roof/slope roof

Angle of operation according to defferent roof

Inlet /Outlet dia: 22mm or 3/4 inch male

Guarantee and service: Ten years warranty, replace free All manual of installation and operation are free Both for inclined or flat roof, install angle from 15-70 degree. CE and ISO9001 AND SOLAR KEYMARK(EN12975) 100% tested before delivery
