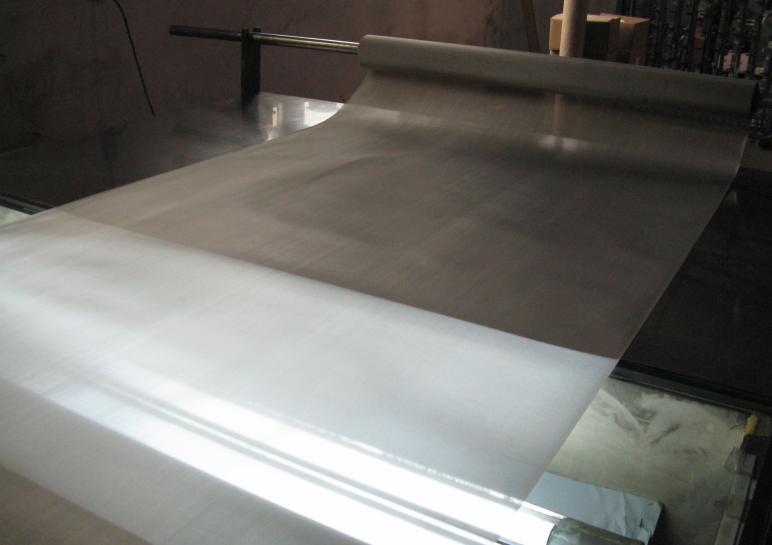

Hastelloy C wire mesh

Hastelloy C Chemical Composition (%): Hastelloy C Ni Mo Cr Fe W Co Mn C V P S Si Min Rem 15.0 14.5 4.0 3.0 Max 17.0 16.5 7.0 4.5 2.5 1.0 0.01 0.35 0.04 0.03 0.08

Physical and Mechanical Properties: Melting point (ºC) 1370 Tensile strength ( M/Pa ) 850-1050

Characteristics: 1. Excellent corrosion resistance in reducing environments 2. Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides 3. Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones of welded joints 4.

Resistance to localized corrosion such as pitting and stress-corrosion cracking 5. One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

Applications: 1. Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings 2. Flue gas desulfurization systems 3. Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping 4. Sour gas wells 5. Pulp and paper production 6. Waste treatment 7. Pharmaceutical and food processing equipment

Specification: Wire ASTM B573 Diameter:0.05mm-10.0mm, 0.002 Inch to 0.3937 Inch Wire Mesh GB/T 5330.1 GB/T 17492 JB/T 9155 0.5-250 mesh/Inch Thickness: Min0.05mm Sheet ANSI/ASTM B434 Thickness: 0.05mm and above
