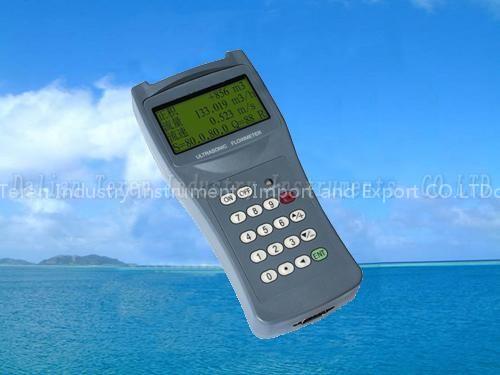

Hand-Held Ultrasonic Flow meters

Linearity 0.5% Repeatability 0.2% Accuracy ±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration Response Time 0-999 seconds, user-configurable Velocity ±0.03 - ±105 ft/s (±0.01 - ±30 m/s), bi-directional Pipe Size 15mm - 6,000mm Rate Units Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons.

User configurable. Totaliser 7-digit totals for net, positive and negative flow Liquid Types Virtually all liquids Security Setup lockout. Access code needed for unlocking Display 4x16 English letters Communication Interface RS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

Transducers Model M1 for standard, other 3 models for optional Transducer Cable Standard 10m, optional 2x1,500 (500m) Power Supply 3 AAA Ni-H built-in batteries.

When fully charged it will last over 10 hours of operation.100V-240VAC for the charger Data Logger Built-in data logger can store over 2,000 lines of data Manual Totalizer 7-digit press-key-to-go totalizer for calibration Housing Material ABS.

Aluminum alloy protective case Case Size 3.9x2.6x0.8 (100mmx66mmx20mm) Handset Weight 1.2 lbs (514g) with batteries
