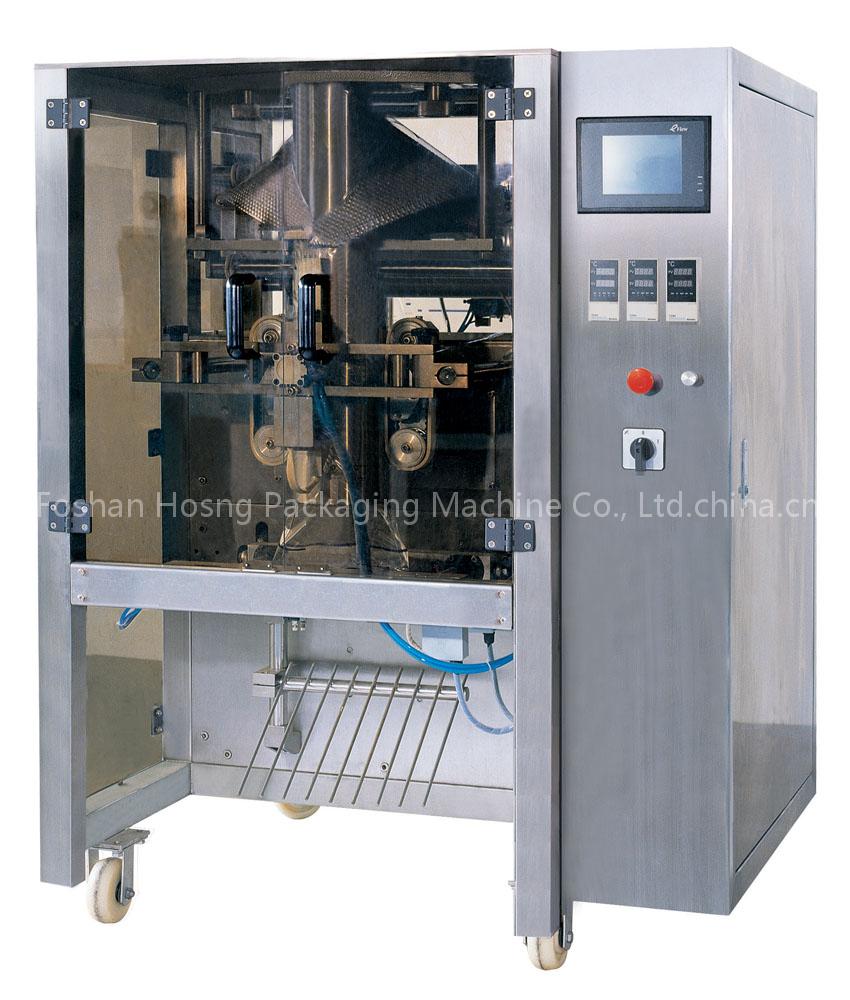

H-S520 Automatic packaging machine
Specifications
- Brand
- H-S
- Origin
- China
H-S520 Automatic packaging machine is a Packaging Machines product. Key specs — Brand: H-S; Origin: China.
Product Description
1 . PLC control with touch panel-step by step instruction
2 Equipped with servo winding system, pneumatic control system.
3:The maximize to improve the whole machine's precision, reliability and stability.
4:Use intellectual temperature controller, the high temperature control to ensure the neat sealing .
5:The perfect automatic alarm safety protection, little waste. This machine completes the whole packing procedure of measuring , feeding , bagging , date printing, charging ( exhausting), products out-putting. counting automatically .
6:Bag type : making pillow bag, vertical gusset bag, hanging bag according to customer's different requireItem Model HS-520 Vertical form-fill-seal machine
Packaging speed 10-70 bag/min
Bag-making size (W)80-250mm (L)80-350mm
Bag-making type PillowStand up bagHole punching device
Filling range Max 2000ml
Max film width 520mm
Film material POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET.
Film thickness 0.04-0.08mm
Air consumption 0.4m3/min 0.8MPa
Total power/voltage 3KW/220V 50-60Hz
Outside size 1430×1200×1700mm/Gross weight 650kg
