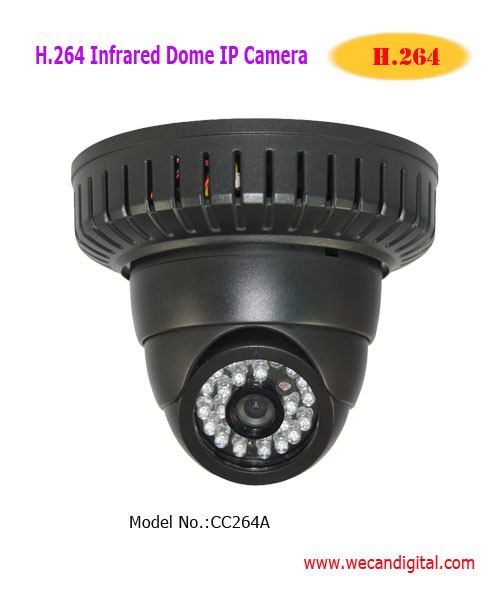

H.264 Infrared Dome IP Camera

Features

1. 1/3” SONY 420TVL CCD color Sensor

2. H.264 Main Profile compression algorithm

3. 720*576P resolution real-time output.

4. 24pcs 850nm led lights, 20m distance with night vision.

Specifications Sensor:1/3” SONY 420TVL CCD color Sensor

Effective pixel:720*576P

Minimum illumination:0.5 Lux

Lens:f=3.6mm, F=2.0, Fixed Iris

Lighting:24pcs 850nm Infrared LEDs, 20m distance

First Stream Resolution:D1(720*576)/CIF(352*288)/QCIF(176*144)

Second Stream Resolution:CIF(352*288)/QCIF(176*144)

Compression:H.264

Frame rate:PAL:25fps; NTSC:30fps

First Stream Bit rate :90kbps ~ 2.048Mbps

Second Stream Bit rate:90kbps ~ 512kbps

OSD:Support

Audio Compression:G.711/G.726

Basic Protocol:TCP/IPH,TTP,SMTP,FTP,DHCP,DDNS,UPNP,NTP

Mobile Phone View:Support

Video control:Support

Motion Detection :Yes( 4 zone detection )

Triggered Actions:Email/ send message to alarm server

User Setting:Three levels

Date/ Time Setting:Support

Upgrade:Upgrade from network

DDNS:A free DDNS provided by manufacturer

Ethernet:10Base-T/100base-TX

Audio In:Audio input interface x 1

OS Supported:Microsoft Windows 98/2000/XP/Vista, Mac OS

Browser:Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc.

Power:DC 12V

Power consumption
