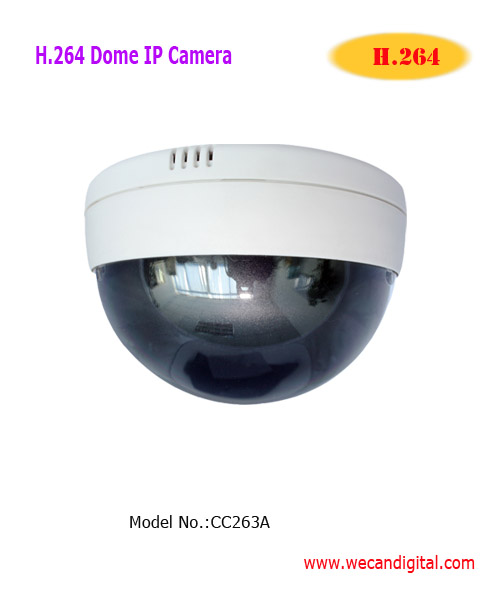

H.264 Dome IP Camera

Features

1. 1/3” SONY 420TVL CCD color Sensor

2. H.264 Main Profile compression algorithm

3. 720*576P resolution real-time output.

Specifications Sensor:1/3” SONY 420TVL CCD color Sensor

Minimum illumination:0.5 Lux

Lens:f=4mm, F=2.0, Fixed Iris

First Stream Resolution:D1(720*576)/CIF(352*288)/QCIF(176*144)

Second Stream Resolution:CIF(352*288)/QCIF(176*144)

Compression:H.264

Frame rate:PAL:25fps; NTSC:30fps

First Stream Bit rate :90kbps ~ 2.048Mbps

Second Stream Bit rate:90kbps ~ 512kbps

OSD:Support

Audio Compression:G.711/G.726

Basic Protocol:TCP/IP、、SMTP、FTP、DHCP、DDNS、UPNP、NTP

Mobile Phone View:Support

Video control:support

Motion Detection :yes( 4 zone detection )

Triggered Actions:Email/send message to alarm server

User Setting:Three levels

Date/ Time Setting:support

Upgrade:Upgrade from network

DDNS:A free DDNS provided by manufacturer

Ethernet:10Base-T/100base-TX

Audio In:audio input interface x 1

OS Supported:Microsoft Windows 98/2000/XP/Vista, Mac OS

Browser:Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc.

Power:DC 12V

Power consumption
