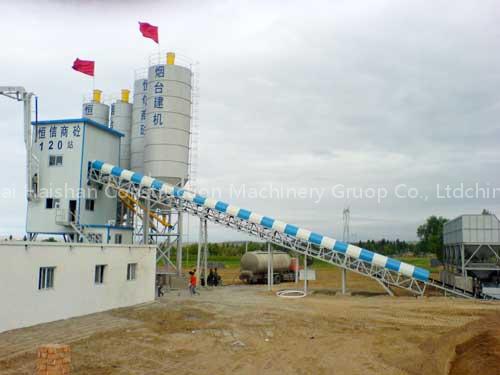

HZS concrete mixing plant

There are two types of Haishan concrete mixing plants, one is stationary ones and the others are mobile ones. The haishan plants have passed CE certificate, ISO9001, ISO14001, OHSAS18000 certificates etc. The structure of the plants is simple and easy to install and debug. They are adopted advanced control system and imports components with high dependability.
Stationary types:

Model	HZS25	HZS40	HZS50	HZS60	HZS75	HZS90	HZS120
Max. Productivity m3/h	25	40	50	60	75	90	120
Main Mixer	JS500	JS750	1000	1000A	1500	1500A	2000
Batcher m3	2*3	2*7	3*13	3*15	4*13	4*15	4*16
Loading mode	Hoisting hopper	Hoisting hopper	Hoisting hopper	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Max Weighing Value of aggregate kg	1500	2000	3000	3000	4000	4000	4000
Max Weighing Value of cement kg	300	400	600	600	1000	1000	1200
Max Weighing Value of water kg	150	200	250	250	3000	300	500
Outline Dimension(L×W×H)m	12×8×11	12×8×11	15×8×13	12×8×11	12×8×11	12×8×11	12×8×11
Discharge Height m	1.6-2.7	1.6-2.7	1.6-3.8	1.6-3.8	1.6-3.8	1.6-3.8	1.6-3.8
Power of Machine KW	60	70	100	100	110	132	200
