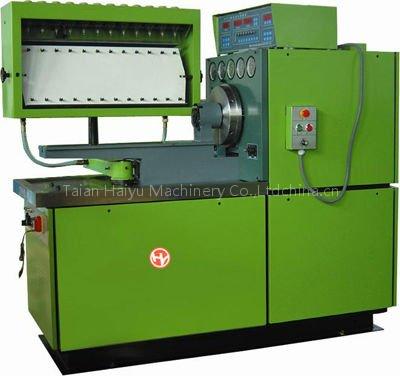

HY-WK pump test bench

Power 11KW/15KW

Speed Range stepless frequency conversion, multi-gear speed overhead, speed :50-400 circle/min or at will

Number of station can be debugged 12

Fuel supply 0-0.4MPa(low pressure) 0-4MPa(high pressure)

Overall dimension length:2100mm width:700mm height:1470mm

Net weight 1000kg

Function debugging the uniformity and quantity of the oil supply of each cylinder in injector pump

debugging the test point and interval angle of oil supply of injector pump

debugging the performance of different speed governor

checking the tightness of injector pump

Testing the quantity of oil return of distribution pump

checking pressure compensator of distribution pump

measuring the pressure of pump chamber

measuring the advance angel

measuring the travel of gear lever
