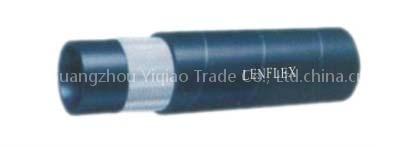

HYDRAULIC HOSE EN 854 / SAE 100 R6
Specifications
- Brand
- LENFLEX
- Origin
- CHINA
Quick answer
HYDRAULIC HOSE EN 854 / SAE 100 R6 is a Rubber Products product. Key specs — Brand: LENFLEX; Origin: CHINA.
Product Description
DESCRIPTIONS OF THE HYDRAULIC HOSE EN 854 / SAE 100 R6
TUBE : OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: ONE WOVEN OR TEXTILE FIBRE BRAID
COVER: ABRASION AND WEATHER RESISTANT SYNTHCTIC RUBBER
TEMPERRATURE: -40°C TO +100°C
TECHNICAL DATA OF THE HYDRAULIC HOSE EN 854 / SAE 100 R6
| Inner | Outside | Max.Working | Test | Min.Burst | Bend | Weight | |||
| pressure | Radius | ||||||||
| Dash | Inches | mm | mm | Mpa | psi | psi | psi | mm | Kg/m |
| 3 | 3/16" | 4.5-5.4 | 10.3-11.9 | 3.5 | 510 | 1015 | 2030 | 50 | 0.100 |
| 4 | 1/4" | 6.1-7.0 | 11.9-13.5 | 2.8 | 410 | 810 | 1620 | 65 | 0.120 |
| 5 | 5/16" | 7.6-8.5 | 13.5-15.1 | 2.8 | 410 | 810 | 1620 | 75 | 0.135 |
| 6 | 3/8" | 9.2-10.1 | 15.1-16.7 | 2.8 | 410 | 810 | 1620 | 75 | 0.160 |
| 8 | 1/2" | 12.4-13.5 | 19.0-20.6 | 2.8 | 410 | 810 | 1620 | 100 | 0.230 |
| 10 | 5/8" | 15.6-16.7 | 22.2-23.8 | 2.4 | 350 | 710 | 1420 | 125 | 0.290 |
| 12 | 3/4" | 18.7-19.8 | 25.4-27.8 | 2.1 | 310 | 610 | 1220 | 150 | 0.380 |
APART FROM THIS HYDRAULIC HOSE EN 854 / SAE 100 R6, OUR COMPANY CAN PROVIDE OTHER KINDS OF RUBBER HOSES, IF YOU ARE INTERESTED IN OUR RUBBER HOSE, PLEASE FEEL FREE TO CONTACT US.
