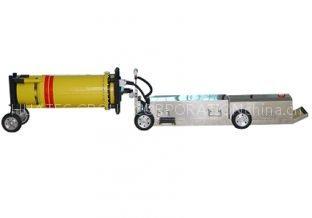

The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.

Specification of X Ray Pipeline Crawler

Model Specification	HXPC-100A	HXPC-100B	HXPC-100C
Pipe diameter detecting range	Φ800â€”Î¦1500mm	Φ500â€”Î¦1000mm	Φ273â€”Î¦700mm
Total weight	140KG	125KG	100KG
Crawler length	2200mm	2000mm	2000mm
Creeping speed	15M/min	15M/min	15M/min
Creeping distance	2KM	2KM	2KM
Locating error	±5mm	±5mm	±5mm
Max.output voltage	300Kv	250Kv	200Kv
Max.outout current	3mA	3mA	3mA
Climbing ability	40°	40°	25°
Radiation angle	360°*35°	360°*35°	360°*35°
Output power	1.5KW	1.25KW	1KW
Batteryenergy	22Ah/120V	17Ah/120V	12Ah/120V
Motor power	300W	300W	200W
Exposure time	1s~1h continues adjustable	1s~1hcontinues adjustable	1s~1hcontinues adjustable
Exposure voltage	5 selection	5 selection	5 selection
Operation temperature	-30°~ 70°	-30°~ 70°	-30°~ 70°
