Delivery Time:within 5-7 days after full payment
Certification:CE,RoHS,ISO9001:2000

Application: Hengstar HDSDI Broadcast Monitor series are specially designed and developed for professional Broadcast and Film production, and the similar application, which needs high-level image effect.

Features:

1. HSIM-1730-W 17'' HDSDI Broadcast Monitor

2. HD/SD SDI signal input, and BNC connectors,

3. Widely applied for Broadcast and Film production, and the similar application, which needs high-level image effect,

4. Automatic PAL, NTSC, SECAM system recognition.

Specifications:

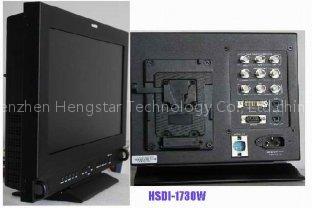

HSIM-1730-W 17'' HDSDI Broadcast Monitor

Product Brief Introduction
High Brightness LCD Pannel	Auto Detect Color Format		3D Video Decoder
Motion-adaptive Interlace	10 Bit Signal Process		SDI Audio Embedded and Audio Display (VU+PPM)
Dual-Picture/Real-Time Display (PIP/PBP Function)	SWAP Function		Color Temperature Selection
Image Size Settings	Mark Settings		Support 3G-SDI Input(Optional)
Part Zoom in (Complementary Focus)	Vector		Luminance Distribution Histogram
TC Code Display	H/V Delay		3-Color Tally Indicator
LCD Monitor Specifications
Model Name		HSIM-1730W
Display Size		17ã€ž
Resolution		1366×768
Aspect Ratio		16:9
Video input/output		1×BNC
Y/C input/output		2×BNC
Component（YPbPr/YCbCr/RGB) input/output		3×BNC（Support 1080p）
HDMI/DVI/VGA		HDMI/DVI/VGA Input Optional
2 SD/HD-SDI Input/1 Output		SD/HD-SDI Auto-Detected
SDI Audio Embedded		8 Audio Channel Embedded/Optional 2 Channel Output
Audio Display(VU+PPM)		Display Volume Unit Meter & Peak Table
Analog Audio Input		3.5mm Headset Switch Cable
Audio Headset Output		3.5mm Headset Jack
Speaker		2.5W×2
Remoted Control		RS-232
Color System		PAL/NTSC/SECAM （Auto-Detected）
Two Pictures (PIP/PBP)		PIP Picture's Size/Position and windows can be sellected; all parameters can be adjusted independence.
Two Pictures Swap		Two Pictures in rapid Swap
Color Temperature
