Listing ID#10036856
ModelZZ3257N3647B
CategoryAutomotives
Quick answer

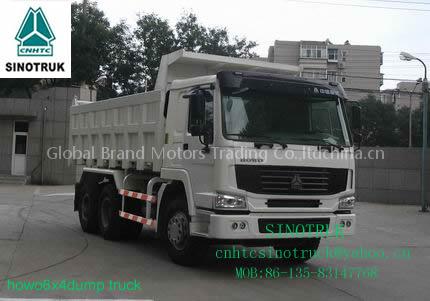

HOWO 6X4 DUMP TRUCK is a Automotives product. Key specs — Origin: China; Price Term: FOB.
Product Description
Chassis model | ZZ3257M3241 | |
Permissible gross vehicle weight(kg) | 25000 | |
rating payload(kg) | 12410 | |
the whole form dimension | 7934X2496X3170 | |
(Length×Width×Height)(mm) | ||
carriage inner dimension | 5400X2300X1000 | |
(Length×Width×Height)(mm) | ||
wheel base(mm) | 3225+1350 | |
wheel track(Berfor/After)(mm) | 2022(2041)/1830 | |
maximum driving speed(km/h) | 75 | |
engine | model | WD615.62/87 |
rating power(km) | 213/2200,196/2200 | |
tyre | 12.00-20 | |
approach angle/departure angle(o) | 19/50 | |
transmission | F9(ZF9) | |
driving axles | HOWO AXLE | |
