Listing ID#10223515
ModelDG135-450
CategoryRefrigeration & Heat Exchange Parts
Quick answer
HOOK is a Refrigeration & Heat Exchange Parts product. Key specs — Origin: China.
Product Description

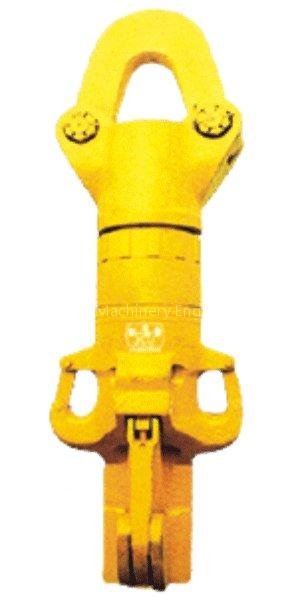

Features of hook:
Built to API Spec 8A, being authorized to use the official API monogram;
Equipped with hydraulic bumper for drill pipe joint protection during breakout;
Reliable safeguard locking device is equipped on the mouth of hook;
Major load-bearing parts subject to nondestructive inspection.
Built to API Spec 8A, being authorized to use the official API monogram;
Equipped with hydraulic bumper for drill pipe joint protection during breakout;
Reliable safeguard locking device is equipped on the mouth of hook;
Major load-bearing parts subject to nondestructive inspection.
Model | DG170 | DG225 | DG315 | DG450 |
Max. hook load kN | 1700 | 2250 | 3150 | 4500 |
Opening size of main hook mm(in) | 180 (7) | 190(7 1/8) | 220(8 5/8) | 220 (8 5/8) |
Dia. of main hook mm(in) | 150 (6) | 160 (6 1/4) | 180(7) | 180(7) |
Dia. of auxiliary hook mm(in) | 90(3 1/2) | 100(4) | 120 (43/4) | 120 (43/4) |
Spring trip mm(in) | 180 (7) | 180 (7) | 200 (8) | 200 (8) |
Dimension(L×W ×H)mm | 2450×750×630 | 2545×780 ×750 | 2953×890 ×830 | 2950×890 ×880 |
Weightkg | 2020 | 2180 | 3410 | 3496 |
