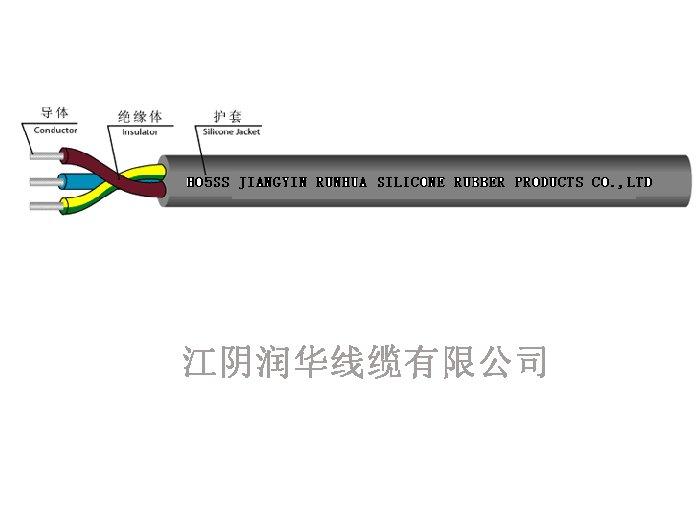

HO5SS high temperature cable
Specifications
- Brand
- RunHua
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
HO5SS high temperature cable is a Electrical Equipment & Supplies product. Key specs — Brand: RunHua; Origin: China (Mainland); Price Term: FOB.
Product Description
| Conductor | Insulation | Max Resistance 20 Ω/Km | Ref. Weight kg/km | ||||
| Nominal Area m | No./D mm | Insulation Thickness mm | Sheath Thickness mm | Nominal Outer Diameter mm | Max Outer Diameter mm | ||
| 20.75 | 24/0.20 | 0.6 | 0.8 | 6.2 | 7.4 | 26.7 | 49.6 |
| 21.0 | 32/0.20 | 0.6 | 0.9 | 6.8 | 8.2 | 20 | 61 |
| 21.5 | 30/0.25 | 0.8 | 1 | 8.4 | 10 | 13.7 | 92.1 |
| 22.5 | 49/0.25 | 0.9 | 1.1 | 9.8 | 11.7 | 8.21 | 146.2 |
| 30.75 | 24/0.20 | 0.6 | 0.9 | 6.6 | 7.9 | 26.7 | 60.4 |
| 31.0 | 32/0.20 | 0.6 | 0.9 | 7 | 8.4 | 20 | 71.4 |
| 31.5 | 30/0.25 | 0.8 | 1 | 8.6 | 10.3 | 13.7 | 106.7 |
| 32.5 | 49/0.25 | 0.9 | 1.1 | 10 | 12 | 8.21 | 154.2 |
| 34.0 | 56/0.30 | 1 | 1.2 | 11.8 | 14.1 | 5.09 | 227.9 |
| 36.0 | 84/0.30 | 1 | 1.4 | 13.4 | 16.1 | 3.39 | 312.4 |
| 40.75 | 24/0.20 | 0.6 | 0.9 | 7.5 | 9.7 | 26.7 | 74.7 |
| 41.0 | 32/0.20 | 0.6 | 0.9 | 8 | 10.4 | 20 | 88.9 |
| 41.5 | 30/0.20 | 0.8 | 1.1 | 10 | 13 | 13.7 | 136.1 |
| 42.5 | 49/0.25 | 0.9 | 1.2 | 11.5 | 15 | 8.21 | 194.4 |
| 44.0 | 56/0.30 | 1 | 1.3 | 13.6 | 17.7 | 5.09 | 287.8 |
| 46.0 | 84/0.30 | 1 | 1.5 | 15.4 | |||
