Listing ID#10096962
ModelHL1000-1800T
CategoryOther Plastic & Rubber Machinery

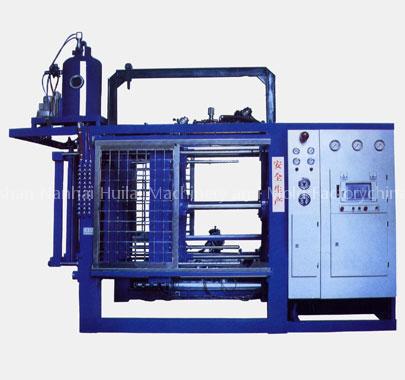

HL1000-1800T Foam Forming Machine
Specifications
- Brand
- Huilai
- Origin
- China (Mainland)
Quick answer
HL1000-1800T Foam Forming Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: Huilai; Origin: China (Mainland).
Product Description
Product Name:HL1000-1800Type series foam forming machine
The Specifications of HL1000-1800Type series foam forming machine
| 　 | Unit | HL-1000A B | HL-1200A B | HL-1400A B |
| Standard mould dimension | mm | 1000*800 | 1200*1000 | 1400*1200 |
| Product size | mm | 850*650*350 | 1050*850*350 | 1220*1050*350 |
| Open mould distance | mm | 1200*100 | 1200*100 | 1200*100 |
| Stroke speed | mm/sec | 210 | 210 | 190 |
| Steam main inlet | mm | 50 | 50 | 65 |
| Cooling water inlet | mm | 50 | 50 | 65 |
| Compressed air inlet | mm | 25 | 40 | 40 |
| Vacuum pump inspire capacity | mm | 165 | 165 | 230 |
| Total power | km | 10.6 | 10.6 | 14.4 |
| Overal dimension | mm | 4500*1640*2700 | 4500*1840*2900 | 4600*2140*3100 |
| Weigh | kg | 4100 | 4600 | 4900 |
| 　 | ||||
| 　 | Unit | HL-1600A B | HL-1800A B | 　 |
| Standard mould dimension | mm | 1600*1350 | 1760*1460 | 　 |
| Product size | mm | 1420*1200*350 | 1580*1320*350 | 　 |
| Open mould distance | mm | 1200*100 | 1200*100 | 　 |
| Stroke speed | mm/sec | 140 | 140 | 　 |
| Steam main inlet | mm | 65 | 65 | 　 |
| Cooling water inlet | mm | 65 | 65 | 　 |
| Compressed air inlet | mm | 40 | 40 | 　 |
| Vacuum pump inspire capacity | mm | 280 | 280 | 　 |
| Total power | km | 19.6 | 19.6 | 　 |
| Overal dimension | mm | 5000*2300*3400 | 5000*2450*3500 | 　 |
| Weigh | kg | 5700 | 6000 | 　 |
We are specialized in manufacturing HL1000-1800Type series foam forming machine
Welcome all kinds of cooperation!
