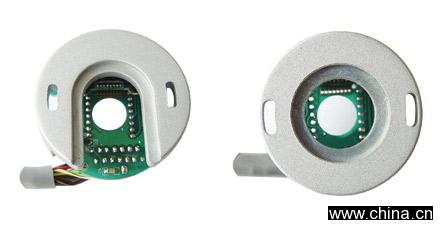

HKM Servo Motor Encoder is a Sensors product. Key specs — Origin: China (Mainland).
Product Description
Model No.: Product
Origin:China Brand
Name:HEDSS
Price Terms:EXW
Payment Terms:T/T in advance
Certification:MC Description:Output wave: Square wave Output signals: A, B, Z, U, V, W (Line driver output A, /A, B, /B, Z, /Z, U, /U, V, /V, W, /W phase) Current consumption: ≤160mAResponse Frequency: 0~200k Hz Output phase difference: 90°±45°Supply voltage: 5V DC, 5-24V DCSignal level: VH ≥85%Vcc, VL ≤0.3VNumber of pulses: 1000, 1024, 2048(2P, 3P, 4P); 2000(2P, 3P, 4P, 6P); 2500(2P, 3P, 4P, 5P, 6P)(Other number of pulse available on request)Output circuit: Line driver, Open collector NPN, Voltage Speed without sealing: 6000rpm Rotor moment of inertia: Appraisal 4.0x10-6kgm2Shock resistance: 980m/s2, 6ms, 2 times each on XYZVibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZWorking life: MTBF ≥50,000h (+25°C, 2000rpm)
Weight: Appraisal 100g (with 0.35 meter cable)Working humidity: 30~85% (No condensation)Storage temperature: -40°C~90°CWorking temperature: -25°C~85°C
