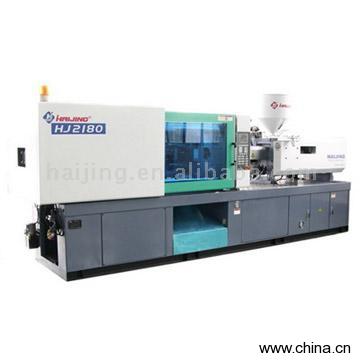

HJ-2180Horizontal Injection Machine

Model No.:HJ-2180 Product Origin:China Brand Name:Haijing Price Terms:EXW, FOB, CFR, CIF Payment Terms:T/T, L/C Certification:ISO9001 Description:Product Name: HJ-2180Horizontal Injection MachineModel Number: HJ-2180Place of Origin: ChinaInjection unit:1) Screw diameter: A D45mm, B D50mm, C D55mm2) Screw L/D ratio: 23.3, 21, 19.13) Shot size (theoretical): 366, 451, 496cm34) Injection weight: 333g, 410g, 4963g 5) Injection rate: 139g/s, 165g/s, 195g/s6) Plasticizing capacity: 25g/s, 27g/s, 39g/s7) Injection pressure: 219Mpa, 177Mpa, 146MpaClamping unit:1) Clamping force: 2,180KN2) Space between tie-bars: 515 x 515mm3) Max. mold height: 530mm4) Min. mold height: 200mm5) Toggle stroke: 470mm6) Ejector stroke: 140mm7) Ejector force: 70kN8) Ejector number: 5pcsOthers1) Pump motor power: 18.5kW2) Heater power: 12kW3) pressure: 16MPa4) Machine weight: 7MT5) Machine dimensions (L x W x H): 5.2 x 1.6 x 2.15m
