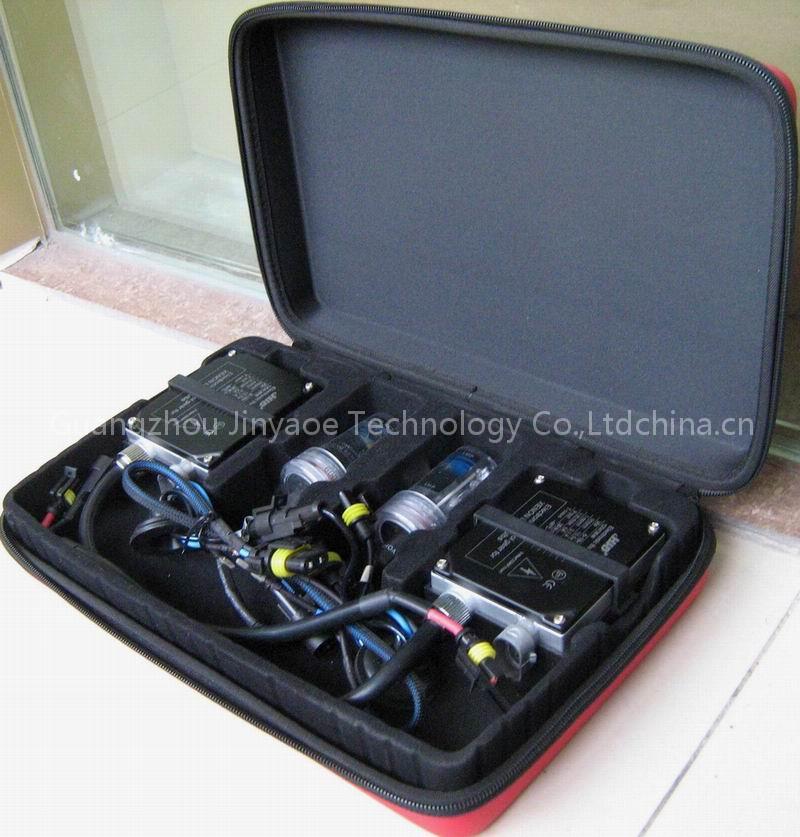

HID xenon kit with DSP ballast
Listing ID#10030583
ModelJYE706,JYE-707
CategoryAuto Lighting Systems

HID xenon kit with DSP ballast

Specifications

Origin
China
Price Term
FOB
Request Quote
Quick answer

HID xenon kit with DSP ballast is a Auto Lighting Systems product. Key specs — Origin: China; Price Term: FOB.

Product Description

we have every HID color lamp:Golden light, White, Green, Pink, Red, Dark Blue, QB, etc. Color Temperatures Available: 3000k, 4300k, 6000k, 8000k, 10000k, 12000k, 15000k The quality certificates we have got: international ISO9001-2000 quality system certification, European E-mark, ROHS, E13,TUV and DQS . Defective rate is less than 0.1%. And the warranty is more than 18 months.

Technical parameters: 12 V 35W NTEREnter rated voltage: 13.5V ( 6~18V Within the scope of normal work Enter starting current: <5.0A (cold)/<4.0A(hot) Enter current stability: 3.0A (enter 13.5 V DC) The importation of low-voltage protection: 6.0 /-0.5V DC Resume the importation of low pressure point: 8.8 /-0.3V The importation of high-voltage protection: 18 /-0.5V DC Resume the importation of high-pressure point: 17 0.5V Enter Fanjie protectionInput is negative to the anti-automatic protection OUTPUTRated output voltage: 85V AC (60~160V AC) Rated power output: 35 /-1W Output frequency: 400 /-10 Hz Output waveformSquare Output short-circuit protectionShort-circuit, 0.2 seconds automatically stop work Open output protectionWhen open, 1 /- 0.2 seconds to stop work Rated efficiency: >86% Row start: Repeated consecutive start, power normal work Applicable temperature range: - 40dgr~ 105dgr Waterproof, earthquake, the salt spray test: Work Specifications: L*W*H: 83*71*30mm Warranty: 18Months
