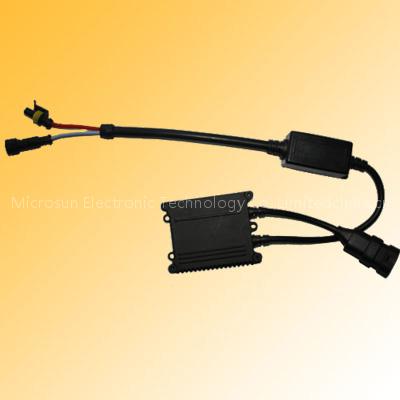

HID Slim Ballast

Parameter of ballast
Standard voltage:13.5V
Input Voltage:9V~16V,9V~32V
Power:35W/55W
Hot starting current:6.5A
Output power:reach 70% in cold string in 2s,reach 80% in 4s,reach rating outpower in 8s
Maximum input electricity:string electricity 6.5A,3.2A in stable state
Instant ignition voltage:23,000V
Effeciency:85%
Defective rate: <3‰ .
Working temperature:-45~+105 degrees

Products test procedure before leave factory
1)open circuit protect
2)short circuit protect
3)short voltage protect
4.)over voltage protect
5)flash impact test
6)shockproof test
7)warm start-up test
8)waterproof/dustproof test
9)polarity protest test
10)EMC anti-jamming test
11)high/low temperature condition operating test

2)

are professional in HID,HID ballast,HID xenon kit.It's famous for their good quality
and stable performance

HID BALLAST SPECIFICATION

Input Voltage: 9~17V
Max Start Voltage: 23kv
warm boot Current: 3.2A
Cold boot current:<6A
Output Power: 35w
Output current:DC
Working Temperature: -40Centigrate~ +105Centigrade
Power Efficiency : reach 82%
Working Frequency:260~310Hz
lifetime of ballast:3500hours
lifetime of xenon bulbs:over 2500hours

The leave factory testing items
1)6 hours continuous working aging test.
2)Connection circuit protection test.
3)Short circuit protection test.
4)Lack of voltage protection test.
5)over voltage protection test.
6)Flash light concussion test.
7)Quakeproof capability test.
8)cold/warm boot test.
9)Polarity protection test.
10)EMC anti-jamming test.
