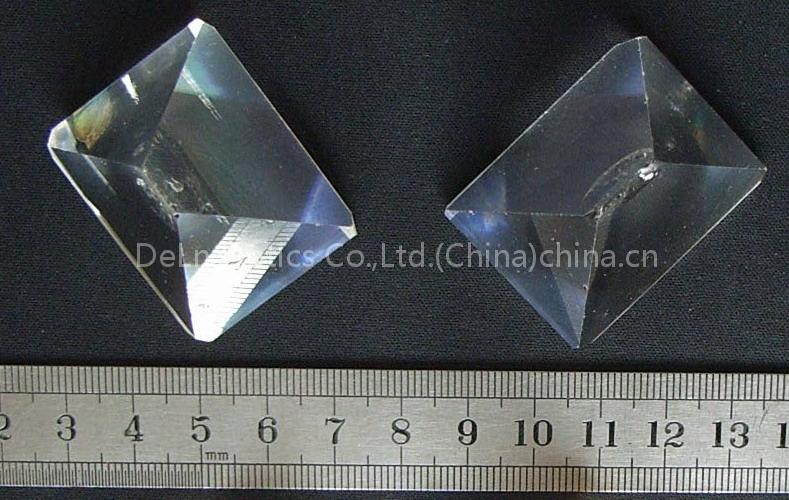

HGTR KTP is a Other Laser Equipment product. Key specs — Origin: China (Mainland).
Product Description
HGTR KTP crystals have gray track resistance sufficiently greater that typical flux grown KTP. This is possible due to advances in the controlled growth of KTP crystals, using proprietary modified fluxes and heat treatment. These HGTR KTP crystals are suitable for high power density applications, where regular flux-grown KTP crystals would suffer from gray track damage.
The above graph shows that the DeLn Optics HGTR KTP elements have both a lower initial IR absorption, and are affected less by the green laser. Thus, HGTR KTP is expected to have a higher gray track resistance than regular flux grown crystals or hydrothermally grown crystals.
Specification
Aperture: up to 8 x 8 mm²
Length: up to 12 mm
Phase-matching accuracy: ± 0.5°
Flatness: λ/10
Parallelism:
Standard: 20 arc sec
On request: 5 arc sec
Perpendicularity: 5 arc min
Scratch/Dig: none at x 100 magnification
DBAR coating:
R < 0.2 % 1064 & 532 nm
Damage threshold:
DBAR coated: > 750 MW/cm² 1064 nm,10 nsec pulse
Uncoated: > 750 MW/cm² 1064 nm, 10 nsec pulse
