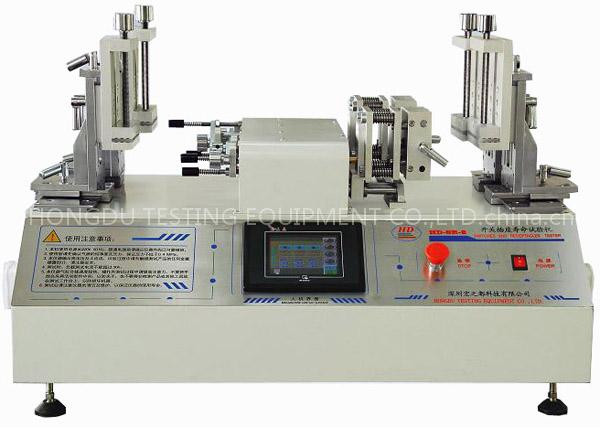

HD-SR-2 Switch and Socket Tester

Product explanation:This machine is designed and manufactured to meet the requirements of GB2099.1,GB10592,IEC60884.1 and UL1054 standards. It can test the mechanical and electric life-span of receptacle and switch. It is mainly used in the plug and socket’s life-span of insert and withdraw testing. It is also used in the switch’s life-span testing.

This machine can work together with the loading machine to perform loading test.Features:* This machine is operated by touch-screen,so it have a highertesting precision.* This machine have four working 1 and unit 2 are used to perform plug&receptacle test 3 and unit 4 are used to perform switch test 1 and unit 2 also can perform switch test together.* Test times can be set in advance,and test times for each working units can be set separately. when the test over, this machine will stop automatically.* When test failed,this machine will alarm and stop working.OPTION: HD-40D Loading machine Technical parameter:Power source AC 220V 50Hz

Rated power 200W

Loading current Less than 30A(when work with a loading machine)

Operating model Touch-screen

Cylinder power Compressed air with 0.4 to 0.6Mpa

Counter 0~99999times

Using temperature 0~400C

Using humidity Less than 85%

Exterior dimensions 1000mm W, 680mm D, 500mm H
