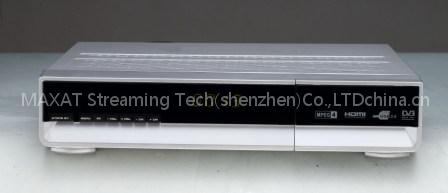

HD DVB Combo Receiver USB+HDMI

- 266 MHz ST40 CPU SH4 Core. STi 7101 based.
Linux Operating System (ENIGMA 2)
Linux DVB-API compatible.
WiFi - 802.11n. Stand-Alone internal Module (optional)
Ethernet 10/100 MBit compatible interface
MPEG-2 / H.264 Hardware decoding
Tuner: DVB-S2, DVB-C, DVB-T
2 x Tuner Module Input - Plug&Play 1 SAT + 1 DVB-T (DVB-T optional) OR 1 DVB-C (DVB-C optional)



DVB-S2 Tuner:
Frequency Range 950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Video decoder
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Capable Resolution: (1080I, 720P, 480P/576P, 480I/576I)
Audio decoder
Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

DVB-C(DVB-C optional)
2 x Smartcard-Reader ISO 7816-3 with programmable clock speed
V.24/RS232 Interface
10/100Mbit Ethernet Interface
1 x Scart (RGB, FBAS or S-Video)
HDMI Output
2 x USB 2.0 external USB
1 x USB 2.0 internal for FileSystem
S/PDIF Interface for digital bit stream out (AC-3)
8 MByte NOR for Secure Bootloader, 128 MByte RAM
unlimited channel lists for TV/Radio
EPG (electronic program guide)
multiple LNB-Switching control (supports DiSEqC)
OSD in many languages and skin-support
Videotext Decoder
Video parameter
Input Level FBAS 1 Vss 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
Output: FBAS, RGB, S-Video, HDMI
Serial Interface RS 232
RS232 bidirectional
BitRate 115,2 kBit/s max.
Plug Connector SUB-D-9
USB
2 x USB 2.0 Host
1 x USB 2.0 Host Internal Slot for USB stick to hold the Firmware.
Count of active satellite position DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
