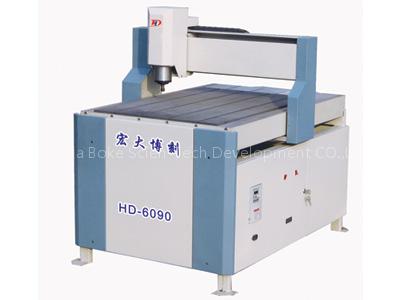

HD-6090 CNC Advertising Machine
Listing ID#10209367
CategoryBusiness Services
Business Services

HD-6090 CNC Advertising Machine

Specifications

Origin
China (Mainland)
Request Quote
Quick answer

HD-6090 CNC Advertising Machine is a Business Services product. Key specs — Origin: China (Mainland).

Product Description

Model HD-6090
XY working area 600x900mm
Z working area >100mm
Table size 720x1150mm
Max travel speed 4m-5.5m/min
Max engraving speed 2m-3m/min
Resolution ratio0.005mm
Reposition accuracy 0.05mm
Max feeding height100mm
Command G code*.u00*.mmg*.plt
Surroundings for softwareWindows98/2000/xp
Power(not include the spindle)300W
Working voltage AC220V/50Hz
spindle power rate 1.5KW
spindle rotating speed0-24000rpm/min
Drive motor Steper
