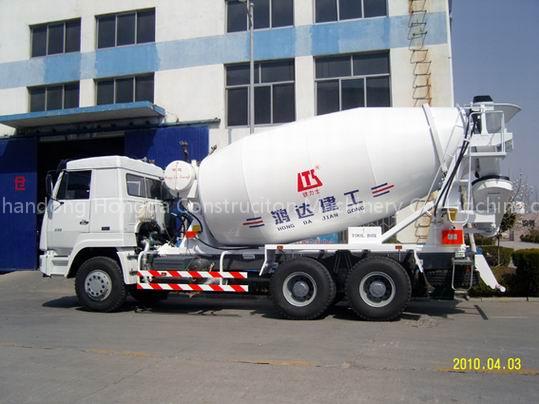

HDT5250GJB Concrete Mixer Truck
Specifications
- Brand
- Tielishi
- Origin
- Shandong China
HDT5250GJB Concrete Mixer Truck is a Truck Parts product. Key specs — Brand: Tielishi; Origin: Shandong China.
Product Description
Total Length:8715MM
Total Width:2496MM
Total Height:3800MM
Chassis Model:ZZ1257N3247C
Max.G.V.W.:25000Kg
Curb Weight:13500Kg
Wheelbase 1:3225MM
Wheelbase 2:1350MM
Front Thread:2022MM
Rear Tread:1830MM
Tyre Model:12.00-20
Front Overhang:1500MM
Rear Overhang:2640MM
Min. Turning Radius:7.6M
Max. Speed:90Km/h
Steering Device:ZF8098
Oil Consumption within 100 Kilos:32L
Engine Model:WD615.95
Cylinder Number and Arrangement:6 Cylinders in Line
Max. Engine Output:247Kw(2200R/Min)
Max. Engine Torque:1350N.M(1100-1600)
PTO Output:600N.M(2200R/Min)
Mixing Drum Volume12.5M3
Mixing Cubage:8M3
Mixing Drum Slope Angle:15°
Mixing Drum Rotating Speed:0-14R/Min
Feeding Speed: Over 3.5M3/Min
Discharging Speed: Over 3M3/Min
Slump:100MM-230MM
Surplus Rate: Close to Zero
Water Tank Volume: 400L
