Listing ID#10096662
ModelSHD630
CategoryOther Plastic & Rubber Machinery

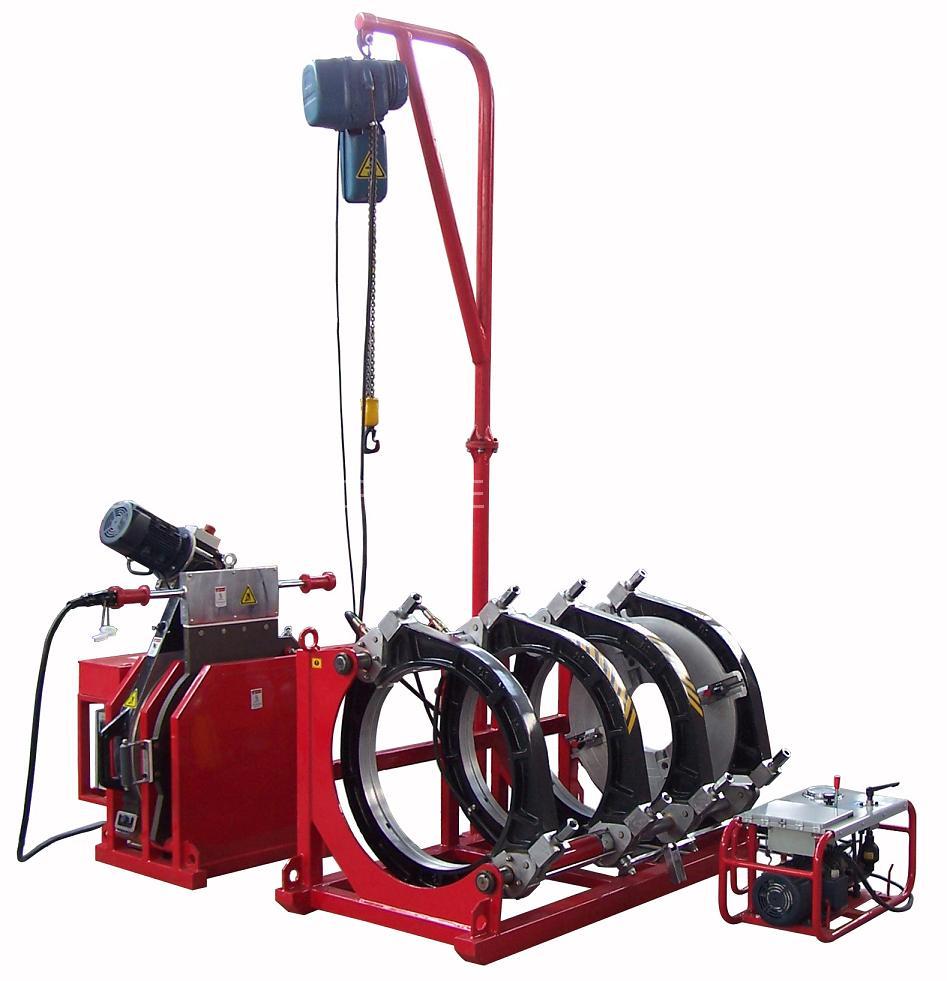

HDPE pipe butt fusion welding machine
Specifications
- Origin
- China
Quick answer
HDPE pipe butt fusion welding machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China.
Product Description
Application and features:
*Suitable for butt welding of plastic pipes and/or fittings made of PE, PP and PVDF in worksite or workshop.
*Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool&heating plate, and optional parts.
*Removable PTFE coated heating plate with high accurate temperature control system.
*Electrical planing tool with safty limit switch.
*Be made of lightweight and high strength material; Designed with a clamp opening angle of 45 degrees C.
*Low starting pressure and high reliable seal structure.
*Changeable welding position enables to weld various fittings easier.
*Separate two-channel timer records time in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings.
*Suitable for butt welding of plastic pipes and/or fittings made of PE, PP and PVDF in worksite or workshop.
*Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool&heating plate, and optional parts.
*Removable PTFE coated heating plate with high accurate temperature control system.
*Electrical planing tool with safty limit switch.
*Be made of lightweight and high strength material; Designed with a clamp opening angle of 45 degrees C.
*Low starting pressure and high reliable seal structure.
*Changeable welding position enables to weld various fittings easier.
*Separate two-channel timer records time in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings.
Optional parts:
*Stub end device for flange stub.
*Data logger.
*Crane.
| Type | SHD630 | |
| Pipe size(mm) | 315,355,400,450,500,560,630 | |
| Heating plate max. temp. | 270 degrees C | |
| Temp. deviation in surface(170-250 degrees C) | ≤±7 degrees C | |
| Pressure adjustable ranges | 0~6.3 MPa | |
| Working voltage | 380 V, 50 Hz | |
| Heating plate power | 9.2 KW | |
| Planing tool power | 1.5 KW | |
| Hydraulic unit power | 1.5 KW | |
| Total power | 12.2 KW | |
| Total weight | 617 KGS | |
| Packing dimension | Frame | 1680X1280X1240 |
| (mm) | Support | 860X1160X1480 |
| Hydraulic unit | 760X490X620 | |
