HDMI to Composite,hdmi to 3rca

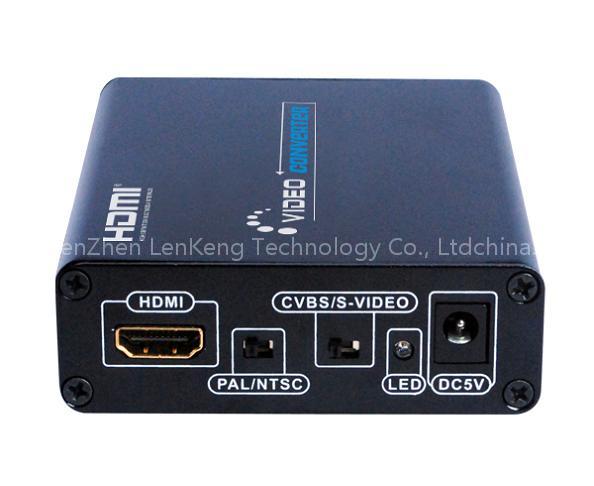

LKV381 is designed to convert HDMI to either Composite Video or S-Video. It allows the devices only equipped HDMI output to be connected to CRT TV. It is mostly applied in AV equipment testing, CCTV monitory, HD PC to TV, DV to Projector, Education, business promotion, etc. Input HDMI Resolution 480p (60Hz), 576P (50Hz), 720p (50Hz / 60Hz), 1080i (50Hz / 60Hz), 1080p (50Hz / 60Hz)

Output Signal Composite Video (1.0Vpp), S-Video(Y:1.0Vpp / C:0.3Vpp) Composite Video and S-Video are not able to be displayed simultaneously

Output Video Systems PAL/NTSC

Output Video Impedance 75Ω

Power Supply DC 5V

Working Temperature -25~75°C

Working Humidity 10%-60%

Product Dimension 118*84*28mm (L*W*H)

Application: -Testing for HD products factory; -Security monitor, display HD CCTV Camera, HD DVR on an analog TV. -Family use. When he has a HD device, but his TV is analog. -HDMI-interfaced laptop to ananlog TV for education, business presentation, commercial promotion, conference, exhibition, etc
