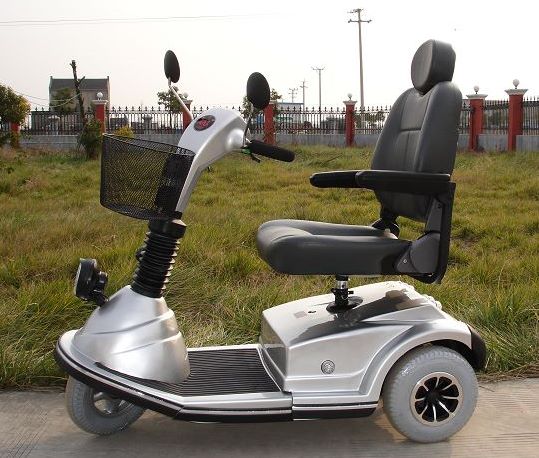

Name: HA-4016 ELECTRIC 3-WHEELS MOBILITY SCOOTER
Brand: HARIMA
SKU: HA-4016

HA-4016				With EEC approval

Features:
1) This model of mobility scooter features streamline appearance with headlight
and rear turning lights.
2) It can run on grassplot and flat ground very freely for indoors or outdoors.
3) With battery energy indicator.
4) Going forward and backward easily controlled by sway type accelerator lever.
5) Turning lights, horn and hazard lights can work once pressing the button.
6) Max. speed can reach up to 12 - 18km/h (optional)
7) The solid, compact and reasonable frame with two main crossbeams,
which gives the scooter high load capacity.
8) Max. load capacity: 200kg
9) Rear wheels equipped with independent suspension system, which provide
the driver comfort, stability and safety
10) Perfectly luxury seat with stable height adjustable lock system.
11) Seat can be rotated 360 degrees toward left to right side;
backrest can be thoroughly folded forward and backward 180 degrees dumping.
12) The width of the flip up armrest can be adjusted freely.
13) Motor power: 800W / 1200W
14) Tires: 13"
15) Equipped with Curtis / pg controller.
16) Optional parts: golf shelf, crutch rack, cup holder, rear basket,
bumper, awning, dust proof, oxygen tank holder.

Specifications:
1) Battery: 2pcs deep cycle AGM or gel cell, 55Ah - 100Ah
Option: lithium battery long life 2000cycles .no need change battery in 3 years
The cheapest lithium battery in china, best benefit for you.
2) Body colors: champagne, candy apple red, viper blue.
3) Drive train motor voltage: 24V DC
4) Ground clearance: 4"
5) Max. speed: 11mph 17km/h
6) Length overall: 52"
7) Range per charge: max. 60 miles 100km by 100AH battery
8) Seat upholstery selections: gray or brown in vinyl and fabric.
9) Seat post adjustment: 3
10) Seat to deck height: 16.5 - 19.5"
11) Seat to ground height: 23- 26"
12) Seat type: high-back CRS recline with adjustable headrest.
13) Standard seat depth: 18"
14) Standard seat back height: 20.5 + HR (27 - 29 with HR) inches
15) Standard seat width: 18"
16) Tire size: front 6 x 13"
17) Tire size: rear 6x 13"
18) Total weight including standard batteries: 320lbs
19) Total weight w/o batteries-battery pack: 198lbs
20) Turning radius: 62"
21) Weight capacity: 400lbs.
22) Weight heaviest piece when disassembled: 82lbs
23) Wheel base: 36"
24) Width overall: 24"

The informations contained herein are correct at the time of publication;
we reserve the right to alter specifications without prior notice.
Speed and range vary with user weight, terrain type, battery charge, battery condition
and tire pressure.
