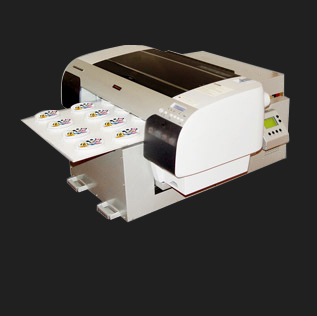

HAIWN-620Multi-function digital ink-jet printer

Haiwn digital printer is a kind of " object non-contact" of ink-jet printing type high-tech digital printing equipment, so it can not be any materials restrictions. Whether simple piece of color design, full color design or have gradient color design, can be printed at one time. No plate making, no sun version and repeat matching color, color bright, the effect is distinct, images waterproof, prevent bask , wear resistance ,good adhesion, do not fade, machine is easy to operate, stable performance, creating higher printing quality than the traditional way, satisfy various industries of high strength of batch production demands and improve your product market competition ability.

can print directly crystal glass, stone, wood, metal, acrylic, plastic, rubber, leather, bamboo, shell, ceramic tile, organic glass, KT board, mobile phone, trademark, Name board, lighter, pen, stationery, key, golf, toys, keyboard, the membership card, glasses, packaging, plastic box, etc

Digital printer characteristics; 1, you can achieve to print directly on any material, No need for plate making and chromatography 2, you can print directly on the product with the height of 1-100mm even 300mm . 3, easy to operate, just like to print on paper 4, low cost, convenient and quick to act, especially for small-volume samples. 5, can be printed on black, red and other dark-colored backgrounds directly, completely solved the printing problem. 6, using non-contact printing principle, can be achieved to print on the surface of the uneven objects within the 3mm. 7,print color rich, wear-resistant, non-fading, achieve the perfect color gradient. 8, device performance stability, and low maintenance costs. 9, low cost: highest print quality cost 0.9 U.S. dollars per square meters We offer various forms of OEM design and production.

Digital direct printers can fulfill to print on many materials directly, like metal, plastic, ABS, PVC, Arcylic , leather, wood，textile，glass，ceramic，DVD & CDs, golf,etc.

HAIWN-620Multi-function digital ink-jet printer

1. can be printed 432mmX600mm (A2+ size)

2. 8 color large capacity (110 ml/box) ink cartridge, easy replacement

3. Continuous printing or continuous interval printing

4. meet such as medium batch and proofing demand

5. A4 full color about 65 seconds

6. be printed object 1-80 mm height

7. automatically detect objects height and the height limit

8. online automatic function

9. many objects can be printed at the same time

10. standby energy saving mode

11. low cost

(2) Specifications

print mode Object Print

print size A2+（432mmX600mm&#65289

Specifications 950×850×570 mm(W*L*H)

Packing size 1000×610×920 mm(W*L*H)

Net weight 113Kg

Gross weight 165kg

print speed 65 sec（A4 photo&#65289

print height 1-80mm

Print weight 12Kg

print head cleaning method

automatic

transmission mode USB2.0

print resolution 2880*1440dpi

media Crystal glass, stone, wood, metal, acrylic, plastic, rubber, leather, bamboo, shell, ceramic tile, organic glass, KT board, mobile phone, trademark, nameplates, lighter, pen, stationery, key, golf, toys, etc

special ink 8 color （110ml/color&#65289

supply ink big capacity ink cartridge

power AC220V/110V

driver WINDOW95/98/2000/NT/XP Operating environment Temperature:10-35degree,Humidity:20-80%

packing Wooden case
