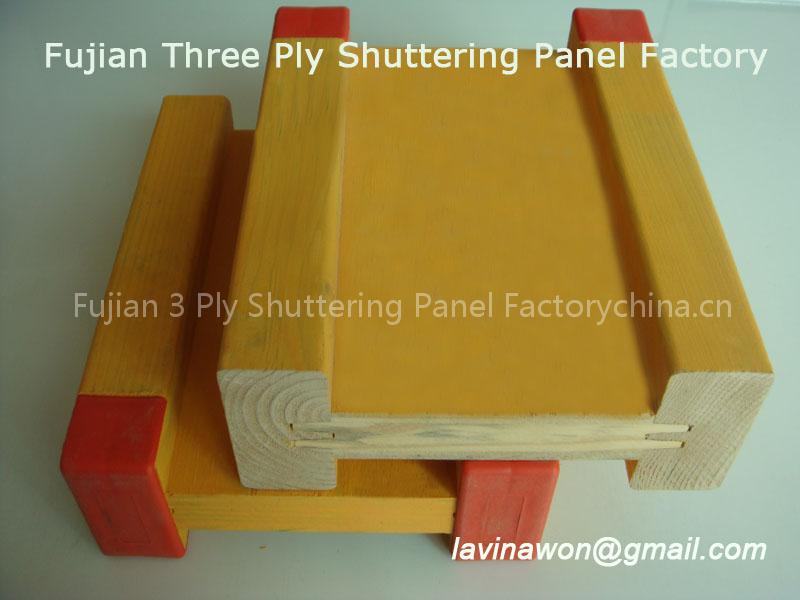

H20 Timber Beam

H20 timber beam is used for concrete formwork construction. It is widely applied in slab/table formwork system, wall formwork system, timber structures and other temporary bearing structures.

Characteristics:

With high standardization, universal property, fast operations.

High stiffness, light weight and strong load-carrying capability.

Simple assembly and disassembly, flexible applications make the easy way to operate on building site.

Low cost, recycle resource, protection, can be repeatedly used.

Weight per running meter: 5.2- 5.8kg.

Mechanical specification:

Bending moment max.5 KN/M

Cutting action max 10.0KN

Bending max1/500

Live load max 1.5 KN/M2.
