Listing ID#10134996
ModelTD-C210
CategorySeals
Quick answer
Graphite packing with carbon is a Seals product. Key specs — Origin: China (Mainland).
Product Description

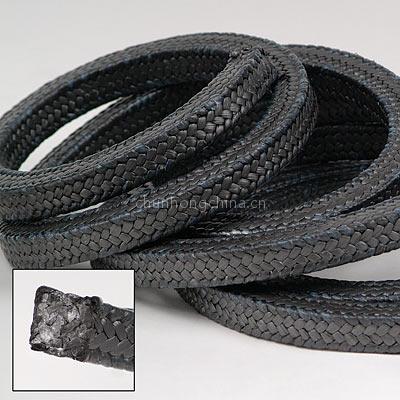

TD-C210 Graphite packing with carbon fiber corners the packing made of graphite yarn wite carbon fiber, This corners and body make it three times more resistant to extrusion and also increase the pressure handing capabilities compared to TD-200H.
STOCK DIMENSIONS
Designed for many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant
SERVICE LIMITS
| ITEM | Rotating | Reciprocating | Static |
| Pressure Psi bar Kg/cm2 | 25 | 100 | 300 |
| Shaft speed M/s | 20 | 20 | |
| Density g/cm3 | 1.4 | ||
| Temperature °C | -220~+550°C | ||
| PH range | 0-14 | ||
| Sizemm | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 15 | 16 | 18 | 19 | 20 |
| appr. m/kg | 35 | 22 | 16 | 9.0 | 5.6 | 3.9 | 2.9 | 2.5 | 2.2 | 1.7 | 1.5 | 1.4 |
| kg/coil | 2 | 5 | ||||||||||
