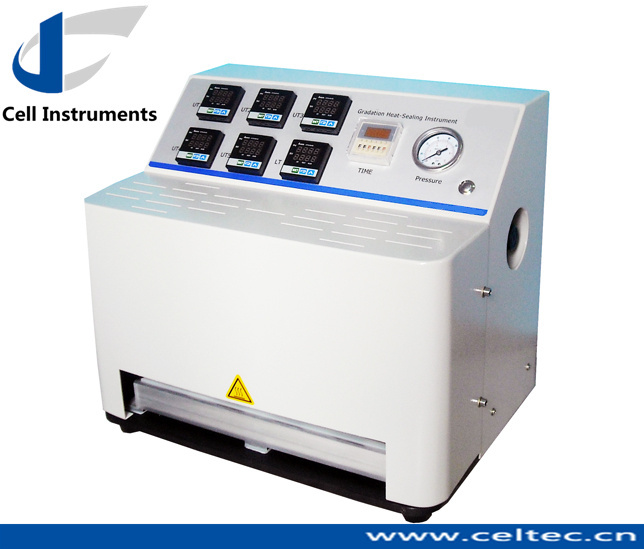

Gradient Heat Seal Tester
Specifications
- Origin
- China
- Packaging
- plywood
- Price Term
- EXW/EX-Work
- Payment Term
- T/T,L/C
Gradient Heat Seal Tester is a Packaging Machines product. Key specs — Origin: China; Packaging: plywood; Price Term: EXW/EX-Work; Payment Term: T/T,L/C.
Product Description
Gradient Heat Seal Tester is professionally designed for the precise measurement of five groups of sealing temperature, time and pressure. Gradient Heat Seal Tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.
Gradient Heat Seal Tester Features 1. Five groups sealing temperature can be measured with one test 2. Proximity and pressure sensor for precise dwell time and sealing pressure control 3. P.I.D. for precise sealing temperature control 4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating 5.
Independent heating of upper and lower sealing jaws 6.
Sealing jaw customization available in term of dimension, shape and surface Gradient Heat Seal Tester Specification Sealing temperature Room Temperature ~ 300℃ Deviation ±0.2℃ Dwell time 0.1 s~990H Sealing pressure 0.15 MPa ~ 0.7 MPa Sealing Jaws 40mm×10mm×5(Sealing Surface)(Customization Available) Double Heating of Upper and Lower Jaws Gas Pressure 0.5 MPa~0.7 MPa of Air Dimensions 455mm (L) *320mm (W) *440mm (H)
Gradient Heat Seal Tester Standards ASTM F2029, QB/T 2358, YBB 00122003
