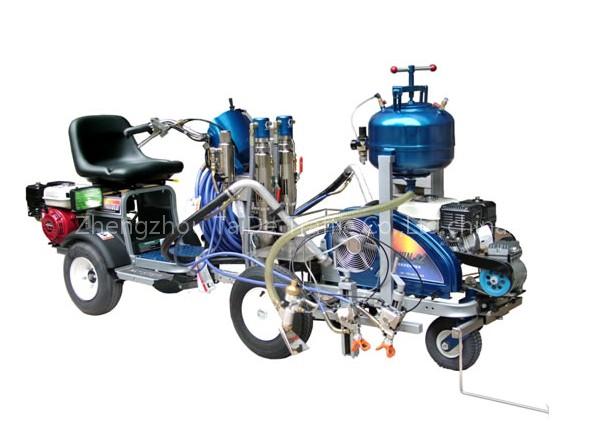

Graco Self Propelled Road Marking Machine
Specifications
- Brand
- TaiDe
- Origin
- China (Mainland)
Graco Self Propelled Road Marking Machine is a Roadway Safety product. Key specs — Brand: TaiDe; Origin: China (Mainland).
Product Description
Technical parameters:
Maximum nozzle size: single-shot .046; double-shot 0.033
Maximum working pressure: 3000PSI
Work flow: 15 liters / min (hydraulic piston pump)
Fuel tank capacity: 3.6 liters
Engine power: 5.5 hp gasoline engine (Honda)
Actual work efficiency: hand-push-type :2-3 km / h
Self-propelled :4-6 km / h
Control System: Multitronic
Sprinkle bead system: spraying by pressure and throwing beads freely as well as exchange variable-based Sprinkle bead systems.
It adopts imported oil-free air compressor and Graco glassbead spraying gun.
Glass Beads Box Capacity: 20L (27KG)
Machine weight: Hand push-type: 175 kg
Self-propelled: 286 kg
