Glazed Tile Roll Forming Machine
Listing ID#17601
ModelLT40-205-1025
CategoryOther Construction Machinery
Other Construction Machinery

Glazed Tile Roll Forming Machine

Specifications

Origin
Shandong, China
Request Quote
Quick answer

Glazed Tile Roll Forming Machine is a Other Construction Machinery product. Key specs — Origin: Shandong, China.

Product Description

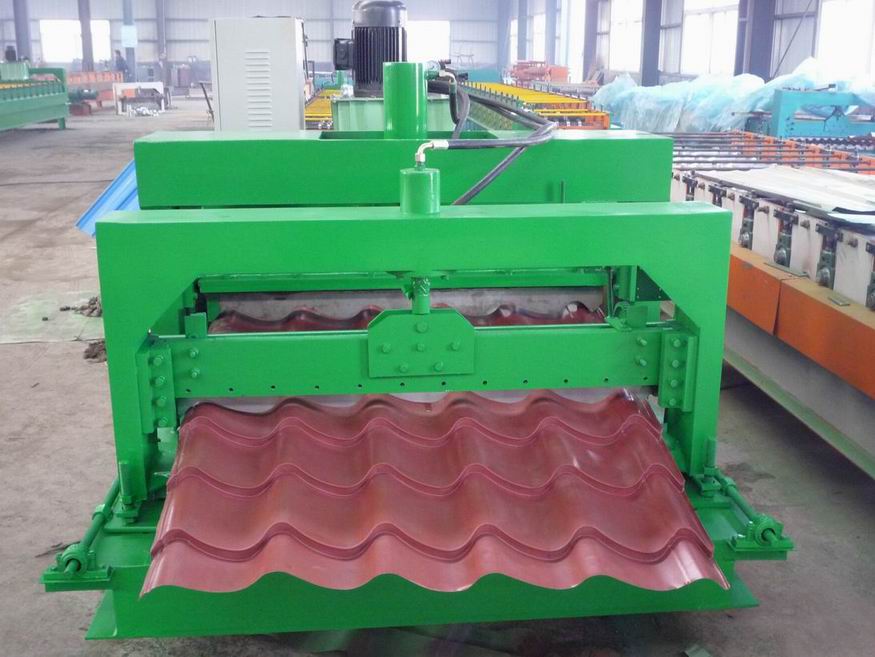

LT40-205-1025 Glazed Tile Roll Forming Machine

Technical Specifications: 1).Coil Width: 1250mm. 2).Effective Width: 1025mm.

3).Suitable Coil Thickness: 0.4mm-0.6mm 4).Forming Speed: 2m-5m/min 5).Suitable Raw Materials: Pre-painted coil; Zinc coated plate 6).Forming Stations: 12 7).Power of main motor: 7.5kw, hydraulic motor: 3kw, 380V 50HZ 3phase 8).Electric control system: PLC 9).Dimensions: about 5700mm x 1750mm x 1460mm (20 feet container) 10).Function: forming roof panel We can design and make according to customer’s requirement.
