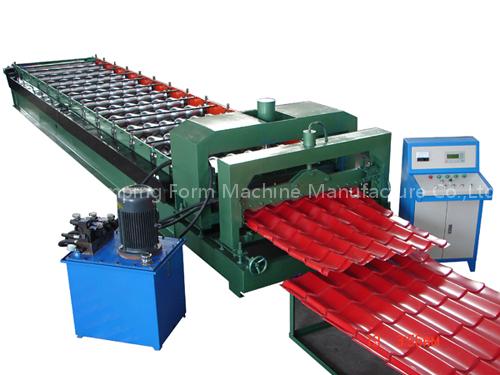

Glazed Steel Tile Forming Machine

The colored steel tile produced by this line look beautiful,elegant and are widely used as the roof of hotel,etc.

Technical parameter : 1) Material spec: colored steel sheet, galvanized steel sheet 2) Thickness of coil sheet: 0.4 - 0.8mm 3) Main motor power: 7.5kW 4) Forming speed: 7~10m/min 5) Hydraulic station power: 3kW 6) Quantity of stands: about 15 groups 7) Hydraulic pressure: 10 - 12Mpa 8) Controlling system: PLC 9) Index error of length: 10m - 2mm 10) Total weight: about 6,500kg 11) Voltage: 380V 3 phase 60Hz or at buyer's requirement Material of main equipment: 1) Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm 2) Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm 3) Cutter blade: Cr12 mould steel with quenched treatment 4) the panel surface no scratch 5)Frequency converter 6)PLC: Computer adopt PLC, Mitsubishi FX-IS series 7)Computer operating board adopt OP320A, China Process flow: Decoiling--- Loading--- Molding---Profiling--- Cutting off--- Discharging
