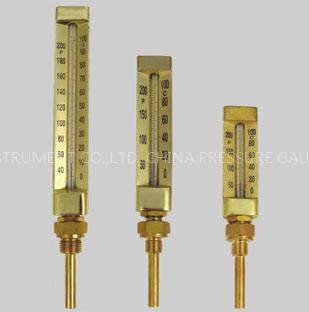

Glass tube thermometer
Specifications
- Brand
- GP
- Origin
- P.R.China
- Price Term
- FOB
Glass tube thermometer is a Electronics & Instrument Enclosures product. Key specs — Brand: GP; Origin: P.R.China; Price Term: FOB.
Product Description
Main Technology Data of the Glass tube thermometer Dia(length): 110mm, 150mm, 200mm Thermometers for general measurement of positive and/or negative temperature Diameter*stem: 110mm*36mm 150mm*36mm 200mm*36mm Case: Aluminium case�V form, Brass-zinc-coated Measuring System: Brass, option: ST.St.
(SS 316) Measure range: minus 60C to 600ºC, option ºF Connection thread: Brass, G1/2", G1/4", G1/8", NPT, BSP, *****: ST.St.
(SS 316) Connection: Bottom, back center, Adjustable angle 90 degree Tube: fluid container: Glass Lens: Red or blue reading mercury or Kerosene filled Element: Round glass tube, trigonal glass tube Stem(testing bar legth): 45mm, 63mm, 75mm, ��at customer's requirements.
