Glass laser engraving machine
Specifications
- Brand
- PENN
- Origin
- China
- Certifications
- CE,SGS
- MOQ
- 1piece
- Packaging
- plywood case
- Price Term
- EXW/EX-Work,FOB
- Payment Term
- T/T,L/C,Western Union
- Supply Ability
- 200pcs/month
- Delivery Time
- 10 working days
- Loading Ports
- Qingdao
- Guarantee
- 1 year
Glass laser engraving machine is a Other Laser Equipment product. Key specs — Brand: PENN; Origin: China; Certifications: CE,SGS; MOQ: 1piece.
Product Description

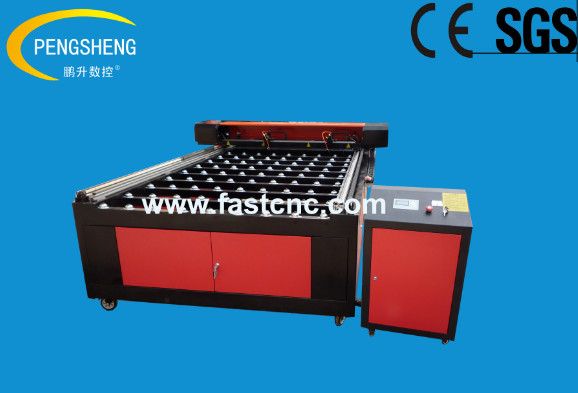

Glass laser engraving machine is specially designed for glass / acrylic engraving. The machine is built with large flat table with roll balls on it, which help to load and move glass or other sheet material, and avoid scratches on material which may be caused by moving and scrape.
Technical parameters: Machine Model PC-1325LG Working Size 1300mm x 2500mm Laser Power 80w / 100w Laser Type CO2 sealed high quality, water-cooling Driving System Stepper motor Cutting Speed 0-40000mm/min (0-1575 inch/min) Engraving Speed 0-70000mm/min (0-2756 inch/min) Resetting Position Accuracy ≤±0.01 Power Supply 220V~240V/110V~120V, 50~60Hz Operating Temperature 0-45°C Operating Humidity 5-95% Min.
Shaping Character English 1.0 x 1.0mm Operating System Leetro USB (MPC6535) control system Graphic Format Supported BMP, PLT, AI, DST, DXF Software Supported CorelDraw, Photoshop, AutoCAD, Tajima Applicable materials: Glass, acrylic, plexiglas, cloth, leather, dual-color plates, wood, rubber, plastic, crystal, paper, stone, ceramics , resin, animal skin, ABS Panels, lamp shades, and other non-metallic materials.
Application industries: Advertising, gift, shoes, toys, decoration, furniture, computers, garments, building, packaging, paper industry and so on.
