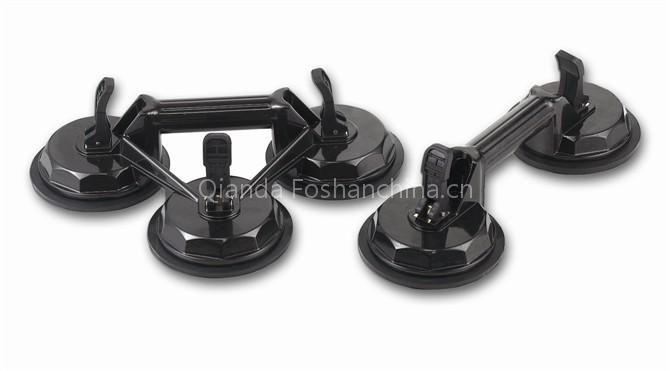

Glass Suction cups

COMMON SENSE AND CAUTION ARE FACTORS WHICH BE SUILT INTO ANY PRODUCT.THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR.

1. Keep product away from damp,wet,rainy,high temperature,fire or direct sun shining conditions.
2. Check for alignment and binding of all moving parts,broken parts or mounting fixtures and other condition that may affect proper operation.
3. Never let childen handle produce and do not use lifter as a dolly.
4. When serving , use only identical replacement of any other parts will avoid the warranty.
5. Do not exceed the lifter’s capacity.
6. Lifter should be used on non-porous materials withn smooth,relatively flat surface.
7. Lifter can only be operated by manual for short distance.
8. Check for damaged parts.Before using,any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function and the surface of rubber pads should be clean up without dirt.

If there is any question about a condition being safe or NOT use the product.

Technical Specifications

Model: Triple Cup Suction Lifter Product Use : Lifting and moving non-porous materials

Storage:When not in use,product should be stroed in a dry,not high temperature,without direct sun shining location to inhibit rust and ware out.

Contruction:Cast Aluminum and Rubber.

Maximum Vertical Capacity:140KG.

Maximum Attraction Capacity:155KG.

Rubber pad diameter:120mm

Operation Direction

1. The principle of operation is by lever and pump action.

The round suction cups are pressed onto the surface of the object to be lever grips are squeezed together into rubber pads are then securely clamped to the surfaces by vacuum so that the object can be release,just flip back the levers.

1. Loaded Surface need to be smooth,relatively flat and non-porous.

Surfaces should be free of oil,grease or water,otherwise slipping can occur.Non-porous materials such as glass,metal,plastics and polished stone are good examples.
