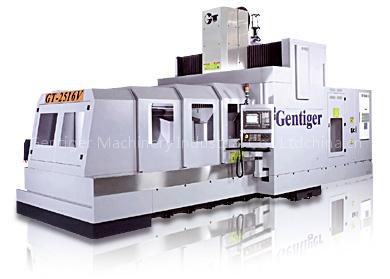

Gentiger - High Speed Double Column Machining Center
Specifications
- Brand
- GT
- Origin
- Taiwan
Gentiger - High Speed Double Column Machining Center is a Industrial Power Supplies product. Key specs — Brand: GT; Origin: Taiwan.
Product Description
| Optimal Machine Structure |
The model GT-2516V is a double column structurd design for high speed machining. The table is independently installed on the base and fully supported by 3 roller-type linear guideways through the entire stroke, assuring maximum accuracy and dependability. The columns are one-piece constructed for extra high rigidity. |
| Lifetime Accuracy |
All castings are stress relieved and seasoning treated for long term accuracy and long service life. |
| Three Axes Linear guide Way |
Roller type linear guide ways on three axes feature higher federate, resist heavier loads and ensure superior dynamic accuracy and a long service life. X-axis is equipped with 3 linear guide ways for superior rigidity. Three axes are driven by powerful servo motors. Its strong power can reduce machining time for large molds and increase profitability. Three axes feedrates: Three axes are equipped with Heidenhain optical scales. Positioning accuracy: 0.005/300 mm. Repeatability: ±0.003 mm. Cutter balance should be calibrated to within G2.5. |
| MODEL | GT-2516V | |
| Max. spindle speed | 10,000 rpm | |
| Spindle taper | BT-50 | |
| Spindle motor | 22 KW | |
| Torque | 140 Nm | |
| Inner Dia, of spindle bearing | 90 mm | |
| Bearing lubrication | Grease | |
| Spindle cooling | Water cooling | |
| Table area | 2800 x 1600 mm | |
| T-slot | 22 x 210 x 8 | |
| Height of table from ground | 980 mm | |
| Max. load of table (Average load) | 10,000 kg | |
| Travel for X, Y, Z axes | 2500 x 1600 x 700 / 800 mm(optional) | |
| Distance from table surface to spindle none | 300 - 1000 mm / 250 - 1050 mm (optional) | |
| Max. height of workpiece | 700 mm / 1000 mm (optional) | |
| Rapid feedrate | 20, 18, 20 m/min | |
| Cutting feedrate | 20, 18, 20 m/min | |
| ATC tool system | BT-50 / 20 tools (40 tools optional) | |
| Max. tool length | 300 mm | |
| Max. tool diameter | 133 mm
| |
