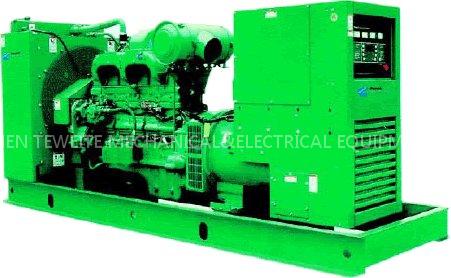

Generator Equipment explanation


Voltage regulation rateBelow situation voltage regulation rate in ±0.5%

·Power factor in 0.8 (lag) between -1.0

·From idling to full load between, by wilfully steady load operatingmode movement

·From Leng Jidao heat engine

·The rotational speed falls does not surpass 4.5%
Frequency control rate

·From idling to full load between, frequency synchronism.
Stochastic frequency flutter rate

·From the idling to the full load between, take wilfully the steadyload merit operating mode movement, the maximum value as ±0.25%
Voltage waveform

·The electric circuit leads the way, the most greatly total waveformdistortion is 1.5%

·The three-phase equilibrium load, the most greatly total waveformdistortion is 5.0%
Telephone influence factor (TIF)

·Is smaller than 50
Telephone overtone factor (THF)

·Is smaller than 2%, conforms to the BS4999 40th part of standard
Electromagnetism influence

·Conforms to the BS800 standard, the VDE rank between G and N
Engine performance parameter Model

·cummins series 4 strokes straight eruptions motive
Lets in air

·Turbocharging

·Has in the water cooling Leng Qi turbocharging
Structure

·The forging steel crank, cast irons the cylinder body and But replacement wet type cylinder jacket, each cylinder four tyre valves.
Starting system

·4VDC motor, 30A-40A charge electrical machinery

·When 0 ℃, the jigger electric current is 640A-1800A
Fuel oil system

·The 24VDC solenoid valve fuel oil shuts off, double-decked revolvesthe paper base fuel filter, electronic velometer union cummins PTpumps for the oil, straight spurts the system. The unit provides thedouble flexible connecting pipe.
Filtration system

·Also positioning indicator dry core air filter.

·Revolving paper base entire class with by-pass oil filter.

·Revolves the corrosion preventing water filter.
Synchronous generator performance parameter Type

·Not brushes, 4 extremely rotary fields, the single bearing, guardsagainst falls the thing protection

·H extremely insulates

·Standard IP22 (or NEMA 1) protects the rank

·IC 01 cooling systems

·All constructs the moisture-proof winding

·Exchanges the exciter, turns on lathe the rotational speed to flow theunit.

·Stator winding epoxy rubber cover.

·The rotor and the exciter pour into the high temperature polyesterrubber, prevents the oil and the acidic material corrosion.

·The rotor transient equilibrium conforms to the BS5652 12.5thstandard

·High-level Lubrication fat seals the long life bearing

·The rotor silicon steel plate machinery agrees tightly
Permanent magnetism excitation system (PMG)

·Matches 2/3 festival distance low electricity anti- winding, the improvement overtonecharacteristic, the enhancement parallel ability.

·Exciter and engine crank and host generator armature coaxial, thematch is good.

·The colloid solidifies the automatic pressure regulator, fromexcitation, from adjustment.

·The polyester varnish tertiary soaks the note, moisture-proof, guardsagainst the oil, is acid-proof, on the shell has guards againstmoistens hangs the varnish coating
Conforms to the standard

·ISO3046 ISO8528
